B20S

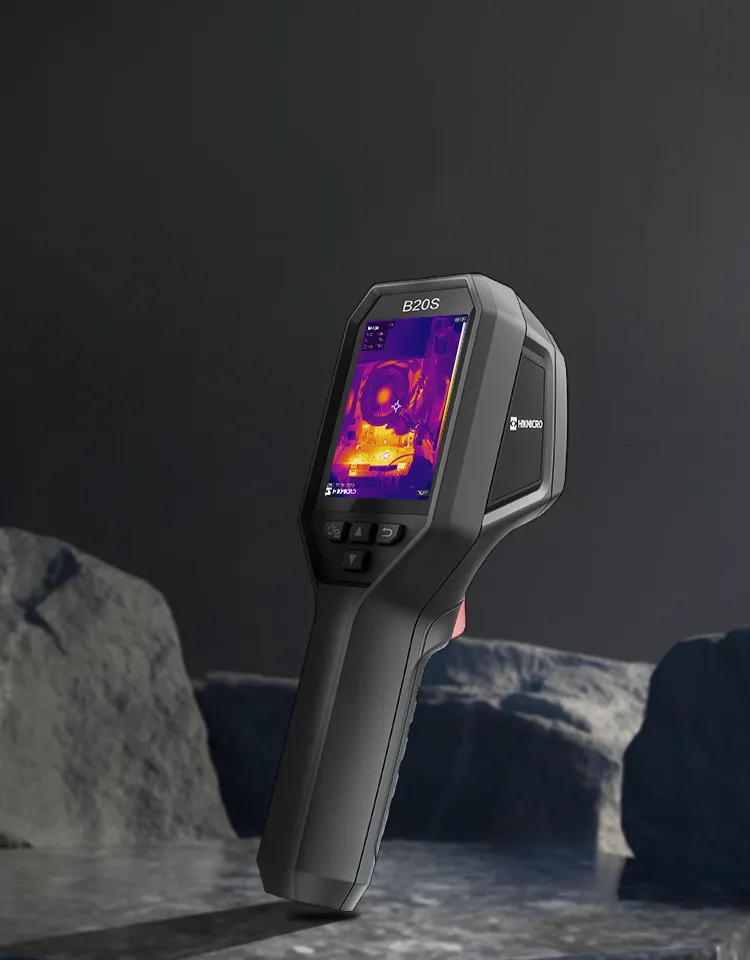

The HIKMICRO B20s is the enhanced, high-definition version of the popular B-series handheld thermal cameras. Designed for technicians who need clear, reliable imagery for daily diagnostics, the B20s retains the robust 256 × 192 thermal sensor of its predecessors but features a significantly upgraded high-resolution 480 × 640 LCD screen. This twice-as-sharp display allows for easier identification of thermal anomalies in building, HVAC, and automotive inspections without stepping up to a larger, more expensive device.

Key Professional Advantages

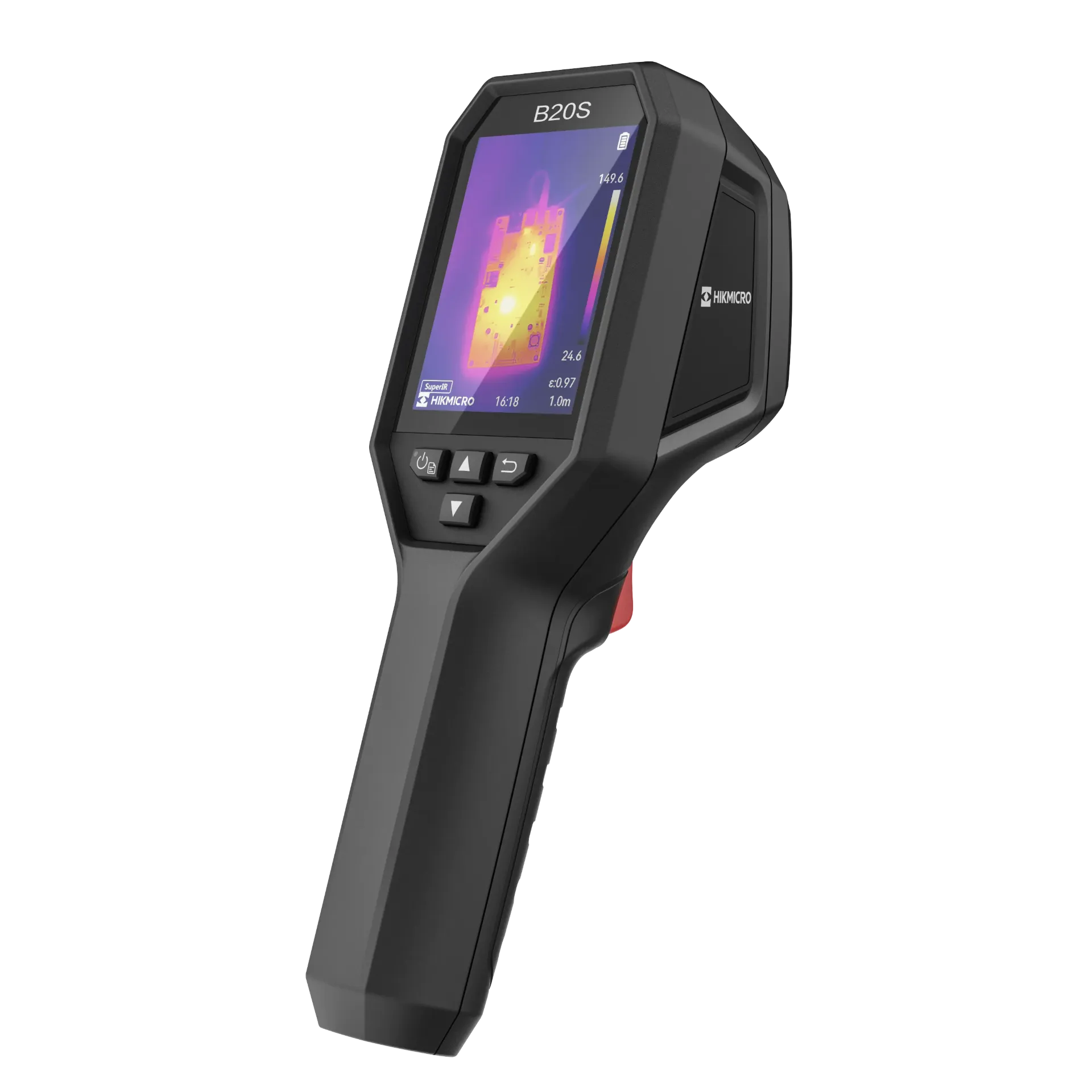

• Upgraded High-Res Display: The standout feature of the "s" model is its 3.2” LCD screen with 480 × 640 resolution. This provides double the visual clarity of the standard B20, making it much easier to read temperature data and identify small components in the field.

• SuperIR Image Enhancement: The B20s uses SuperIR technology to upscale captured images and live views to 640 × 480 (307,200 pixels). This ensures that your professional reports feature sharp, detailed thermal maps that exceed the camera's native sensor resolution.

• Fluid 25 Hz Frame Rate: Unlike entry-level 9 Hz cameras, the B20s offers a smooth 25 Hz refresh rate. This is critical for scanning moving parts or walking through a facility, as it eliminates image lag and ensures you don't miss a transient heat spike.

• Focus-Free Simplicity with Macro Support: Optimized for speed, the B20s is a focus-free device—just point and shoot for accurate results from 0.3m. For ultra-close-up work, it is compatible with an optional clip-on macro lens, allowing you to see details as small as 500 microns on circuit boards.

• Dual-Camera Fusion: Equipped with a 2 MP visual camera, the B20s supports Image Fusion. This mode overlays the thermal heat map onto a visual image, providing the structural context (like labels or specific wire colors) needed to pinpoint exactly which part of a system is failing.

Technical Specifications Overview

Ideal Everyday Applications

• HVAC & Plumbing: Quickly locating clogs in radiators, identifying leaks in underfloor heating, and verifying AC performance.

• Residential Energy Audits: Scanning for missing insulation, drafty windows, and air leaks around doors and electrical outlets.

• Automotive Repair: Checking for overheating brakes, blocked catalytic converters, and electrical shorts in fuse boxes.

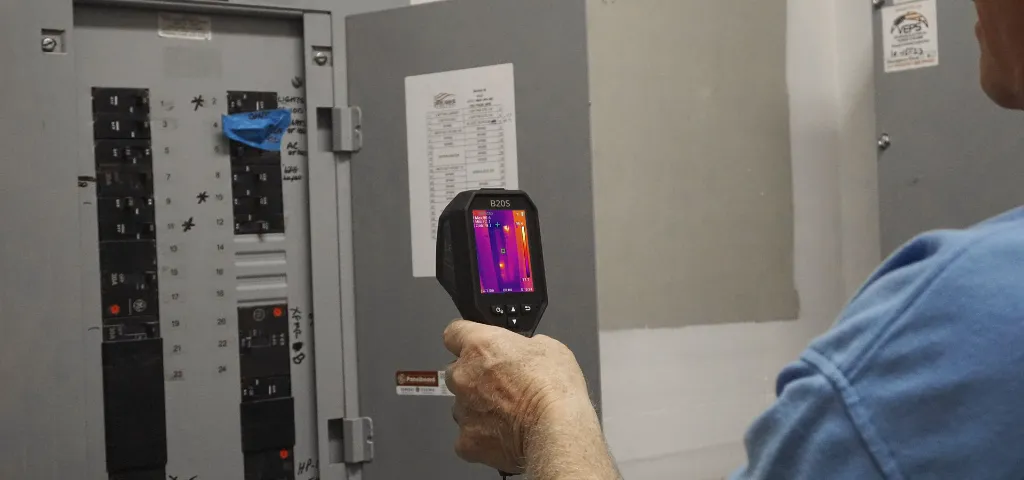

• Light Industrial Maintenance: Monitoring motor temperatures and electrical distribution panels for loose connections.

In the Box

1. HIKMICRO B20s Handheld Thermal Camera

2. USB-C Charging & Data Cable

3. Power Adapter & International Plugs

4. Wrist Strap

5. Quick Start Guide

6. Calibration Certificate
