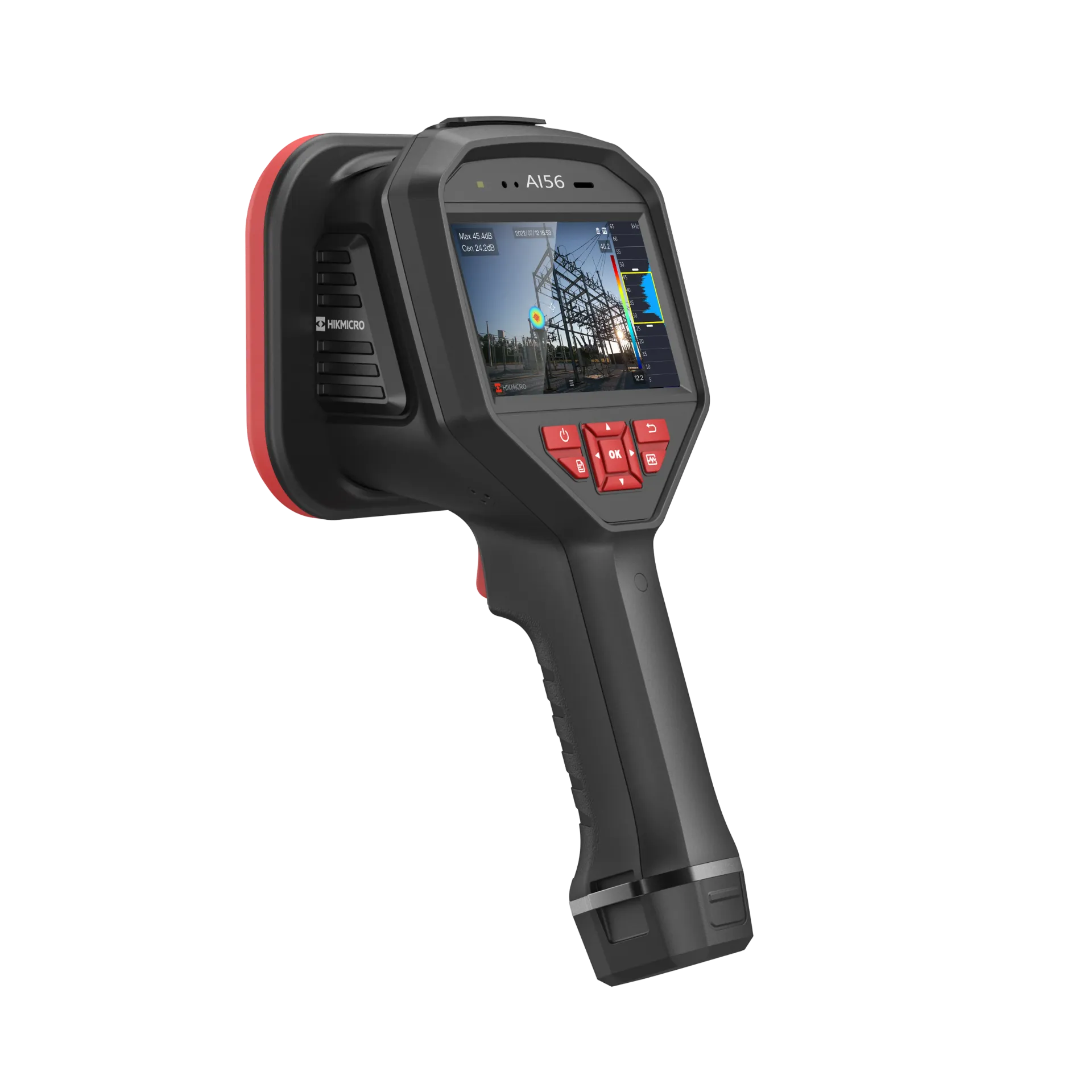

AI56

The HIKMICRO AI56 is the ultimate diagnostic tool for minimizing energy waste and preventing equipment failure. By overlaying a real-time sound map onto a high-resolution optical image, the AI56 allows you to pinpoint the exact source of a leak or electrical discharge from a safe distance of up to 100 meters. It is an essential asset for facility managers, energy auditors, and utility engineers who need to conduct large-scale inspections with 90% more efficiency than traditional methods.

Key Professional Advantages

• 64-Microphone Precision Array: Features 64 high-sensitivity MEMS microphones that work in unison to isolate specific sound frequencies. This allows the camera to filter out loud factory background noise and focus purely on the "hiss" of a leak or the "crackle" of an electrical fault.

• Real-Time Leak Quantification: The AI56 doesn't just find the leak; it analyzes it. The camera provides real-time estimates of the leak rate (l/min) and estimated annual cost, allowing you to prioritize repairs based on actual financial impact.

• Smart Partial Discharge (PD) Detection: Specifically engineered for the power sector, the AI56 can identify and categorize four types of partial discharge: Corona, Floating, Surface, and Particle. This diagnostic intelligence helps prevent catastrophic transformer or insulator failures before they occur.

• Wide Frequency Bandwidth (2 kHz to 65 kHz): The adjustable frequency range allows you to "tune" the camera to specific industrial gases or electrical signatures, ensuring maximum accuracy across diverse environments.

• Dual-View Analysis: Combine the 5MP optical camera with the acoustic sound map on a bright 4.3” touchscreen. This "Fusion" mode provides the structural context needed to identify exactly which valve, joint, or insulator is failing.

• Lightweight & One-Handed Operation: Weighing only 940g, the AI56 is designed for long shifts. Its ergonomic "gun-style" grip and intuitive interface allow for seamless operation even in complex industrial settings.

Technical Specifications Overview

Primary Industrial Applications

• Manufacturing & Food Processing: Detecting compressed air and nitrogen leaks on production lines to reduce energy overhead.

• Power Utilities & Substations: Identifying partial discharge on high-voltage insulators, bushings, and transformers from a safe ground-level position.

• Chemical & Petrochemical: Locating gas leaks in pressurized piping and storage tanks to ensure site safety and environmental compliance.

• HVAC & Steam Systems: Pinpointing vacuum leaks and steam trap failures in large-scale commercial facilities.

In the Box

1. HIKMICRO AI56 Acoustic Imaging Camera

2. Two (2) Rechargeable Li-ion Batteries

3. Dual-Bay Charging Base & Power Adapter

4. Rugged, Airtight Hard Carrying Case

5. 64 GB MicroSD Card

6. USB-C and HDMI Cables

7. Calibration Certificate
