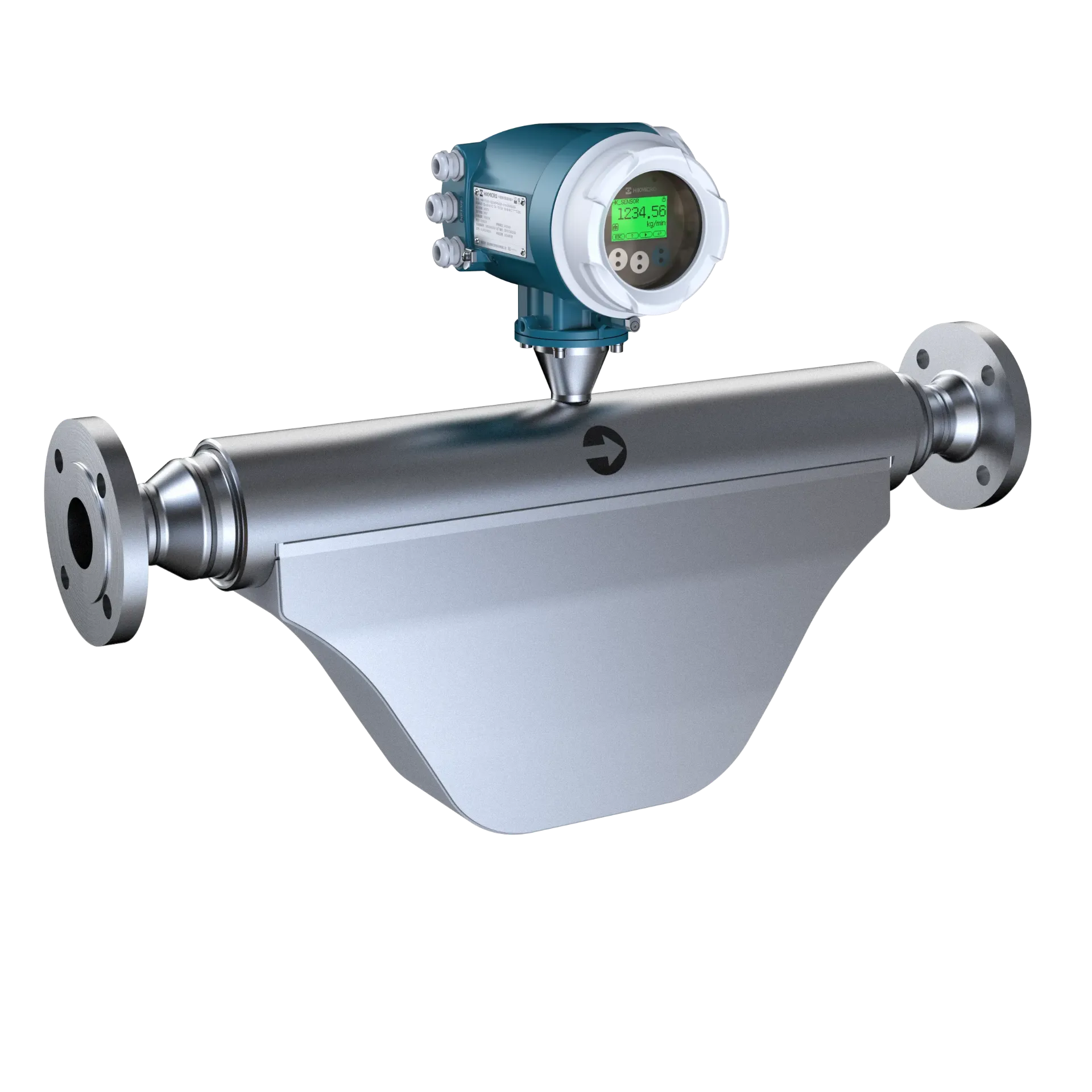

HIKMICRO FC00 Coriolis Mass Flow Meter
The HIKMICRO FC00 Series is an elite Coriolis mass flow meter designed for the direct, high-precision measurement of mass flow, volumetric flow, density, and temperature. Operating independently of the fluid’s physical properties—such as viscosity, pressure, or temperature variations—the FC00 provides a true, uncompromised reading of what is moving through your pipelines.
Powered by ultra-fast digital signal processing that captures 8,000 sampling points per second, it is the ultimate solution for critical custody transfer, batching, and highly regulated industries including metallurgy, petrochemicals, and life sciences.
Key Professional Advantages
Unmatched Measurement Precision: Delivers a staggering accuracy of ±0.1% for liquids and ±0.5% for gases, making it the premier choice for applications where slight measurement errors translate to massive financial losses.
Exceptional Density Accuracy: Features advanced digital temperature compensation algorithms that ensure density accuracy of ≤±0.001 g/cm³, critical for quality control in food, beverage, and pharmaceutical blending.
Ultra-Fast Digital Processing: The transmitter evaluates 8,000 sampling points per second, providing an instantaneous response to sudden flow changes in dynamic batching or filling operations.
Wide Range Ratio (30:1): Maintains high accuracy even at very low flow rates, offering immense flexibility across different production phases without needing to swap meters.
Intelligent Self-Diagnosis: Built-in system health monitoring actively checks for noise interference, wiring grounding issues, and coil failures, alerting your control system before a physical breakdown occurs.
FC00 Series Variant Comparison
| Nominal Diameter | Primary Measurement Focus | Best For... |
| DN15 | Low-Volume / Micro-Dosing | Laboratory scale batching, high-value chemical dosing, and flavor injection in food processing. |
| DN25 | Standard Industrial Flow | Pharmaceutical production lines, standard beverage filling stations, and continuous process control. |
| DN50 | Mid-to-High Volume | Industrial chemical blending, refinery intermediate transfers, and dairy processing lines. |
| DN80 | Large-Scale / Custody Transfer | Main pipeline monitoring, ship bunker fuel measurement, and heavy petrochemical custody transfer. |
Technical Specifications Overview
| Feature | Specification |
| Mass Flow Accuracy (Liquid) | ±0.1% |
| Mass Flow Accuracy (Gas) | ±0.5% |
| Density Accuracy | ≤ ±0.001 g/cm³ |
| Sampling Rate | 8,000 points per second |
| Range Ratio | 30:1 |
| Outputs | 4-20mA, Pulse, Modbus RTU, HART |
| Protection Rating | IP67 (Transmitter) / IP68 (Sensor) |
Typical Industrial Applications
Oil & Gas / Petrochemical: High-accuracy custody transfer, refining process control, and bunker fuel measurement.
Food & Beverage: Precise batching of ingredients, syrup density control, and hygienic milk/beer transfer.
Pharmaceuticals & Life Sciences: Ultra-pure water measurement and precise chemical dosing where contamination or measurement error is strictly prohibited.
Chemical Manufacturing: Measuring highly corrosive or viscous liquids safely and accurately.
In the Box
HIKMICRO FC00 Coriolis Mass Flow Sensor
FC00 Digital Transmitter (Integral or Remote Mount)
Standard Flange Mounting Hardware
Power and Signal Connectors
Factory Calibration Certificate (NIST/ISO traceable)
Technical Installation Manual
-
