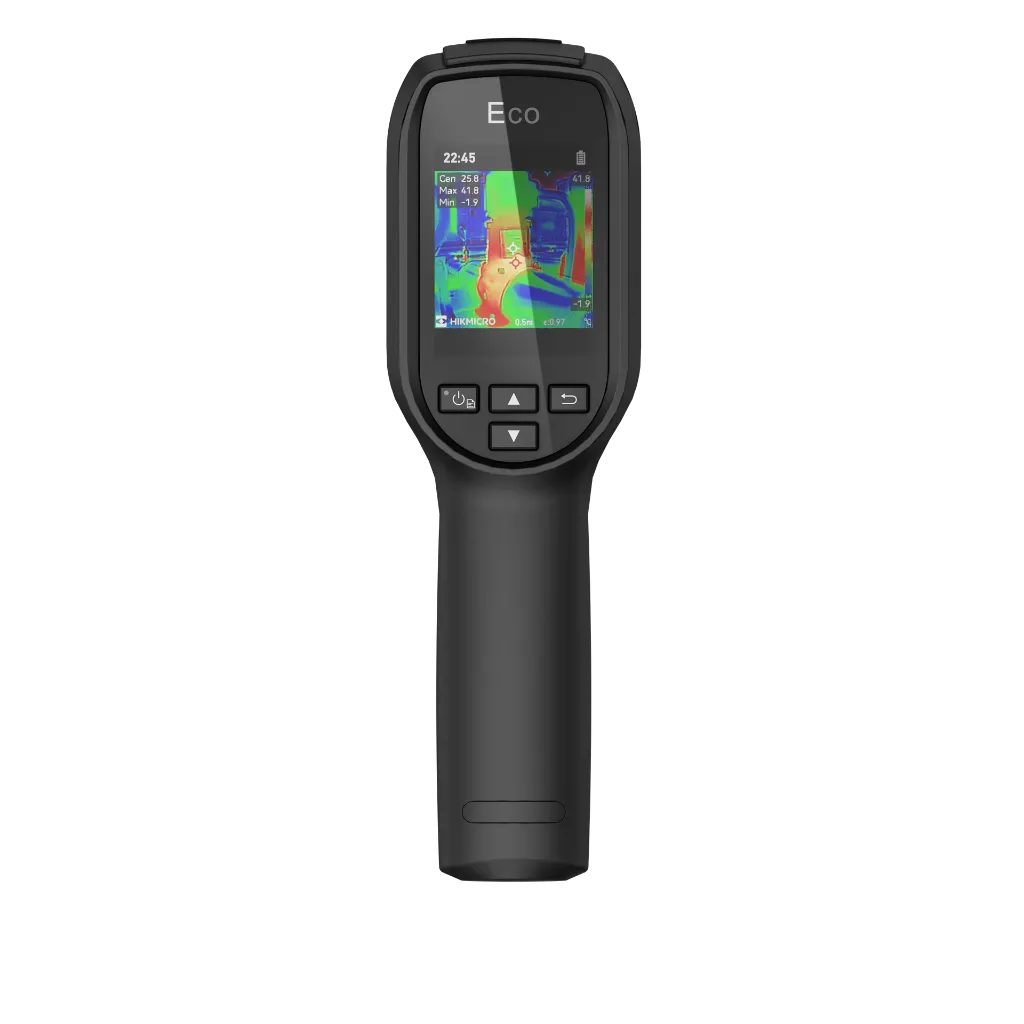

Еcо
Professional Efficiency for Everyday Diagnostics
The ECO series is engineered for professionals who require reliable thermal data without the complexity of high-end systems. It provides clear thermal signatures, accurate temperature measurements, and a fast refresh rate to ensure no detail is missed during a walk-through inspection.
Key Features
Fluid 25Hz Imaging: Unlike many budget thermal cameras that use a 9Hz refresh rate, the ECO provides smooth 25Hz video. This allows for comfortable scanning of moving targets and large areas without stuttering or motion blur.
Wide Temperature Range: Accurately measure temperatures from -20°C to 550°C (-4°F to 1022°F), making it versatile enough for everything from sub-zero refrigeration checks to high-heat electrical or mechanical inspections.
Full-Shift Battery Life: Equipped with a built-in Li-ion rechargeable battery, the ECO provides up to 8 hours of continuous operation on a single charge.
Rugged Reliability: Designed for the toughest job sites, the camera features an IP54 rating for protection against dust and water splashes and is drop-tested to 2 meters (6.6 ft).
High Sensitivity: With a thermal sensitivity (NETD) of < 50 mK, the sensor detects subtle temperature differences, which is critical for identifying hidden moisture or insulation gaps.
Technical Specifications
| Feature | Specification |
| IR Resolution | 96 × 96 (9,216 pixels) |
| Frame Rate | 25 Hz |
| Thermal Sensitivity (NETD) | < 50 mK (@ 25°C, F#=1.0) |
| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) |
| Field of View (FOV) | 50° × 50° |
| Display | 2.4" LCD |
| Storage | Built-in 4GB flash memory (>30,000 images) |
| Weight | Approx. 290g (0.64 lb) |
Core Applications
Electrical Maintenance: Quickly identify overheating breakers, loose connections, and imbalanced loads in residential and commercial panels.
HVAC Troubleshooting: Verify radiator performance, check for ductwork leaks, and troubleshoot underfloor heating systems.
Building Inspections: Locate missing insulation, identify thermal bridges around windows and doors, and detect early signs of moisture intrusion.
Automotive Repair: Diagnose cooling system blockages, exhaust leaks, and faulty heated seat elements.
What’s in the Box?
HIKMICRO ECO Thermal Camera
USB-C Charging & Data Cable
Wrist Strap
Soft Carrying Pouch
Quick Start Guide & Calibration Certificate
