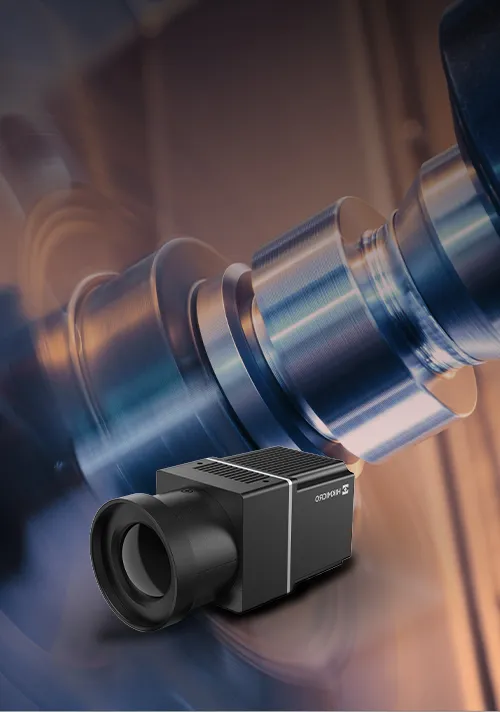

HIKMICRO QD610 HFR R&D Thermal Camera
The HIKMICRO QD610 (HM-TD2D67E-7/Q) is a specialized, laboratory-grade thermal imaging camera engineered for high-speed scientific research, dynamic product testing, and fast-moving industrial quality control. Designed to capture ultra-fast thermal events, this dual-mode camera allows engineers to toggle between high-definition structural monitoring and extreme High Frame Rate (HFR) capture.
Like the rest of HIKMICRO’s elite R&D lineup, the QD610 delivers an exceptionally tight laboratory-grade measurement accuracy of ±1°C in the critical 0–150°C testing range. Supported by native Modbus TCP/RS485 connectivity and Alarm I/O, it seamlessly bridges the gap between the R&D testing lab and high-speed automated production lines.
Key Professional Advantages
Dual-Mode High Frame Rate (HFR): Engineers can choose between capturing high-definition thermal data (640 × 512 at 50 fps) for spatial clarity, or prioritizing speed by switching to 100 fps (at 384 × 288 resolution). This 100 Hz capture rate is critical for freezing fast-moving thermal transients, dynamic stress tests, and instantaneous electrical failures.
Laboratory-Grade Precision: For the critical 0°C to 150°C testing range, the camera guarantees an accuracy of ±1°C / ±1%, providing the exact, reliable data necessary for scientific publication, safety certifications, and R&D validation.
Wide-Angle Thermal Intelligence: Equipped with a 7 mm wide-angle lens (90.4° × 75° field of view), it is perfectly optimized for monitoring large test benches, battery arrays, or wide conveyor webs from a short distance.
Wide Testing Range: While offering tightened precision for lower temperatures, the sensor remains fully capable of testing high-heat prototypes and industrial processes, supporting a total measurement range of -20°C up to 650°C.
Industrial Automation Ready: Despite its scientific focus, the unit supports DC 12-24V power and standard industrial protocols, allowing successful high-speed lab tests to be scaled directly into factory-floor quality assurance nodes.
Technical Specifications Overview
| Feature | Specification |
| Thermal Resolution & Speed | 640 × 512 @ 50 fps OR 384 × 288 @ 100 fps |
| Lens System | 7 mm Wide-Angle (90.4° × 75°) |
| Measurement Accuracy | ±1°C / ±1% (for 0~150°C) ±2°C / ±2% (Standard range) |
| Temperature Range | -20°C to 650°C |
| Communication Protocols | Modbus TCP, RS485 |
| Interface | Alarm Input / Alarm Output |
| Power Input | DC 12-24V |
Typical Scientific & Industrial Applications
High-Speed Automotive Testing: Thermal characterization of rapid mechanical events, such as airbag deployment, brake friction transients, and fast-charging EV battery thermal runaway.
Dynamic Electronics Testing: Capturing instantaneous short circuits, rapid heat dissipation, and thermal spikes in power electronics before catastrophic failure occurs.
High-Speed Manufacturing: Quality assurance on extremely fast automated conveyor lines where a standard 50 Hz camera would suffer from motion blur.
Materials Science: Observing the thermal conductivity and stress-fracture heat signatures of materials subjected to rapid dynamic loading or ballistic testing.
In the Box
HIKMICRO QD610 HFR R&D Thermal Camera
7 mm Wide-Angle Lens
Lab & Industrial Mounting Hardware
Power & Data Interface Connectors
Premium Calibration Certificate (Lab Grade)
Technical Documentation & Software Guide
