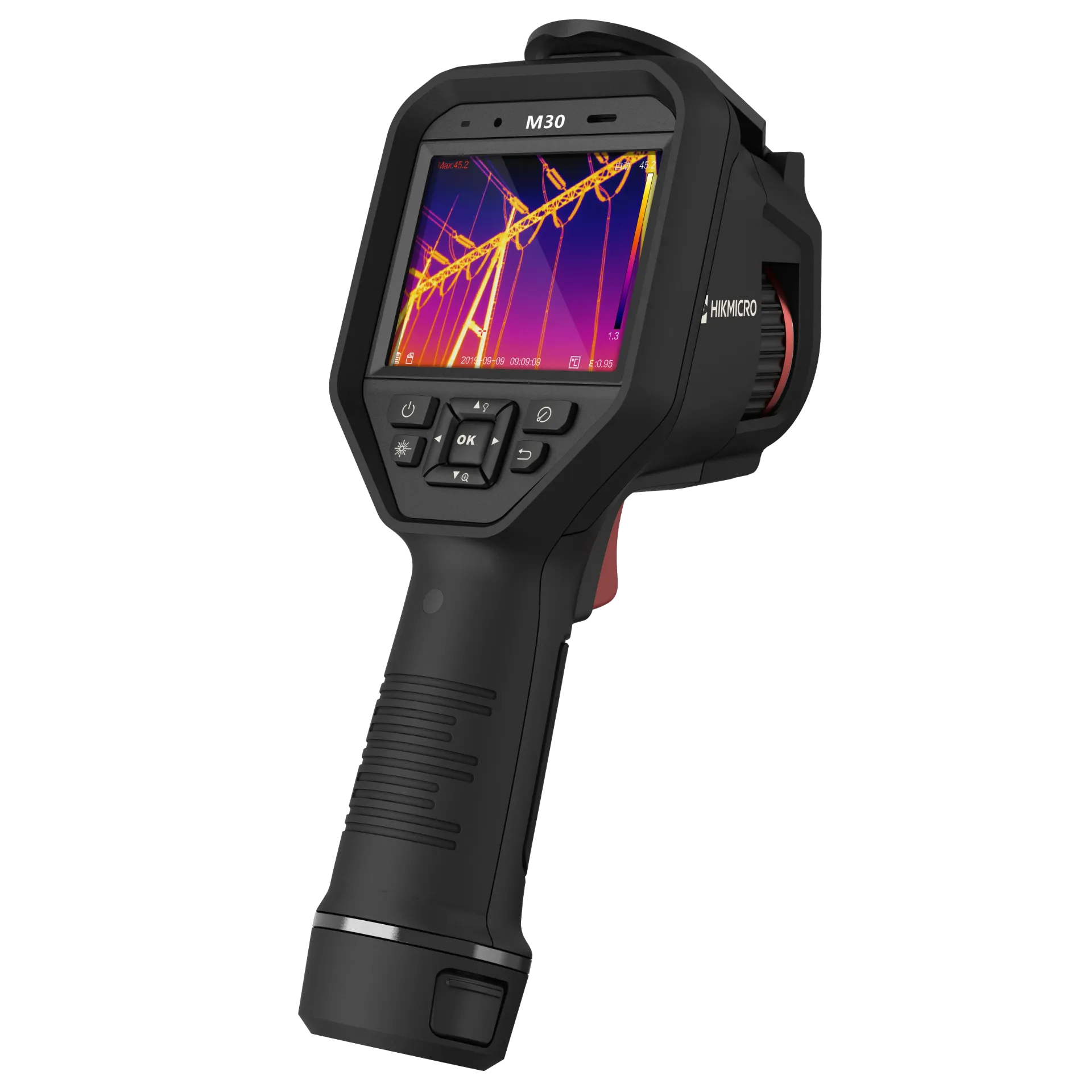

M30

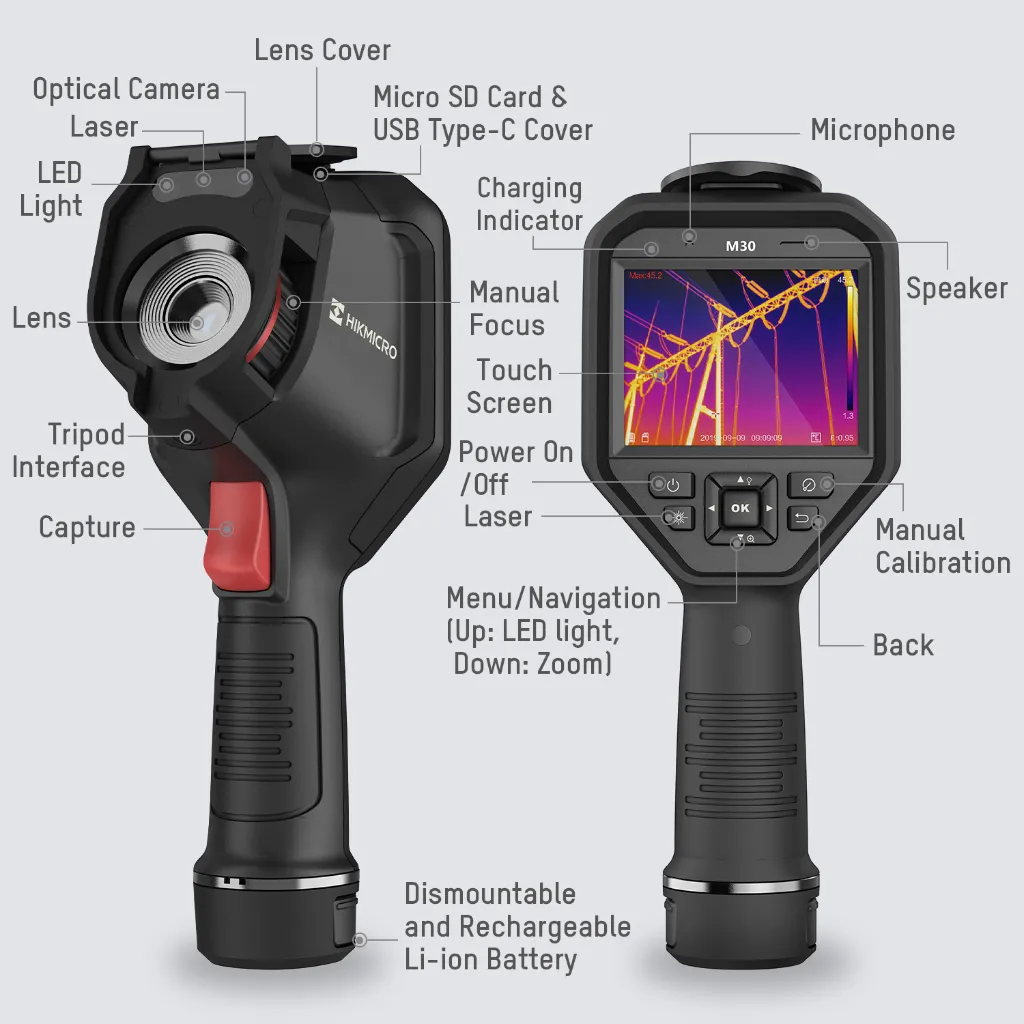

The HIKMICRO M30 is a high-performance handheld thermal camera designed for professionals who demand precision, flexibility, and high-resolution data. Positioned as the workhorse of the M-Series, the M30 features a 384 × 288 thermal sensor and manual focus capability, allowing thermographers to capture razor-sharp images of targets both near and far. It is the ideal tool for complex electrical inspections, mechanical troubleshooting, and detailed building energy audits.
Key Professional Advantages
Precision Manual Focus: Unlike fixed-focus cameras, the M30 allows you to manually dial in the focus. This is critical for identifying small components in crowded electrical panels or inspecting distant mechanical bearings where clarity is essential for accurate temperature measurement.
High-Resolution Imaging (SuperIR): The native 384 × 288 resolution is enhanced by HIKMICRO's SuperIR technology, upscaling images to 768 × 576 in real-time. This provides a clear, high-definition thermal map that makes subtle anomalies easy to spot.
Rapid 25 Hz Frame Rate: The M30 captures 25 frames per second, ensuring a smooth, lag-free experience when scanning large areas or monitoring equipment with moving parts.
Large 3.5” Touch Screen: A high-brightness LCD touchscreen makes navigation and on-site analysis simple. With the "Tap-to-Focus" and "Level & Span" features, you can instantly highlight the most important thermal data in any scene.
Ruggedized for the Field: Built to withstand the toughest industrial environments, the M30 is IP54-rated for dust and water protection and is drop-tested to 2 meters.
Technical Specifications Overview
| Feature | Specification |
| Thermal Resolution | 384 × 288 (110,592 pixels) |
| SuperIR Resolution | 768 × 576 (442,368 pixels) |
| Focus Mode | Manual Focus |
| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Frame Rate | 25 Hz |
| Thermal Sensitivity (NETD) | < 35 mK |
| Digital Zoom | 1.0x to 8.0x Continuous |
| Visual Camera | 8 MP with Thermal Fusion & PIP |
Ideal Industrial Applications
Electrical Maintenance: High-detail scanning of breakers, busbars, and transformers to find loose connections or phase imbalances.
Mechanical Inspections: Checking motor bearings, gearbox heat dissipation, and conveyor belt friction points.
Building Science: Identifying thermal bridges, missing insulation, and water ingress in commercial and residential structures.
HVAC & Utilities: Mapping underfloor heating systems, boiler performance, and Identifying leaks in high-pressure steam lines.
In the Box
HIKMICRO M30 Thermal Camera
Two (2) Interchangeable Li-ion Batteries
Dual-Bay Battery Charger
Rugged Hard Carrying Case
USB-C Cable & Power Adapter
MicroSD Card (16 GB)
Calibration Certificate
