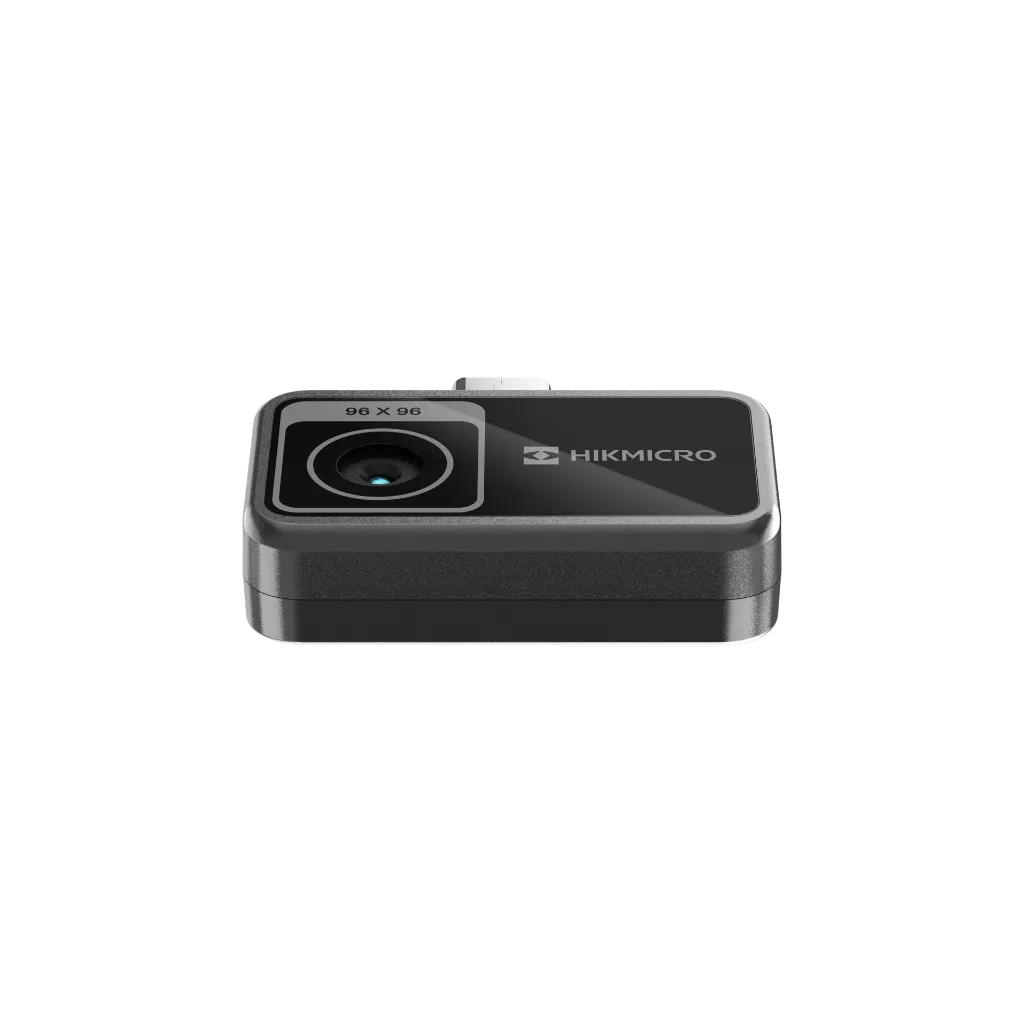

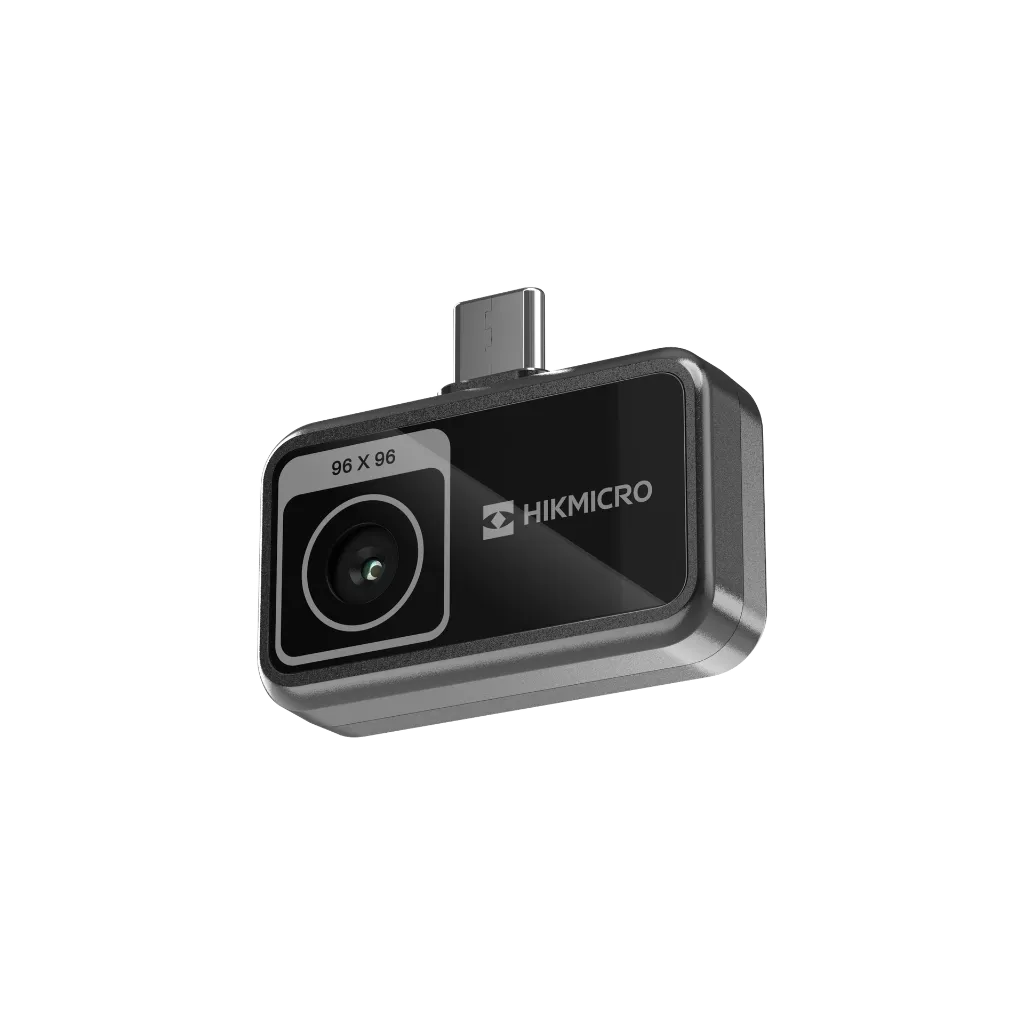

MiniE
The HIKMICRO Mini E is the most compact and accessible thermal imaging module in the smartphone lineup. Designed as a high-value entry point for rapid troubleshooting, the Mini E transforms any USB-C or Lightning device into a functional thermal scanner. Weighing just 20 grams, it is the ultimate "always-on-hand" tool for first-line technicians, facility managers, and automotive professionals who need instant thermal insights without the bulk of a handheld camera.
Key Professional Advantages
Ultra-Compact "Invisible" Design: At approximately 20 grams, the Mini E is small enough to live in a pocket or toolbox indefinitely. It requires no internal battery, drawing negligible power directly from your smartphone for instant operation.
Optimized for Rapid Screening: While compact, the Mini E delivers a 96 × 96 resolution (9,216 pixels) that is enhanced by HIKMICRO’s SuperIR technology. This provides clear, actionable imagery for identifying electrical hotspots, pipe blockages, or insulation gaps.
High-Speed 25 Hz Performance: Unlike many budget-tier smartphone modules that lag at 9 Hz, the Mini E offers a fluid 25 Hz refresh rate. This ensures a smooth "live" viewing experience while scanning moving equipment or walking through a facility.
Wide Temperature Range: Capable of measuring from -20°C to 400°C, the Mini E covers most common industrial and residential diagnostic needs, from sub-zero HVAC checks to high-heat motor monitoring.
Full App Integration: Compatible with the HIKMICRO Viewer App, allowing users to generate instant reports, change color palettes, and set temperature alarms directly on their mobile device.
Technical Specifications Overview
| Feature | Specification |
| Thermal Resolution | 96 × 96 (9,216 pixels) |
| SuperIR Enhancement | Yes (Optimized for live view & capture) |
| Frame Rate | 25 Hz |
| Thermal Sensitivity (NETD) | < 50 mK |
| Temperature Range | -20°C to 400°C |
| Field of View (FOV) | 50° × 50° |
| Weight | Approx. 20 g |
| Protection Level | IP40 |
Ideal Use Cases
Electrical First-Response: Quickly identifying loose connections or overloaded breakers before deploying high-end SP-series cameras for deep analysis.
HVAC & Plumbing: Locating underfloor heating leaks, checking radiator balancing, and identifying air leaks in ducting.
Automotive Maintenance: Checking for engine misfires, radiator blockages, or sticking brake calipers.
Home Energy Audits: Identifying missing wall insulation and draft sources around windows and doors.
In the Box
HIKMICRO Mini E Thermal Module (USB-C or Lightning)
USB-C Extension Cable (for use with thick phone cases)
Protective Soft Carrying Bag
USB-C to Lightning Adapter (depending on model)
Quick Start Guide
