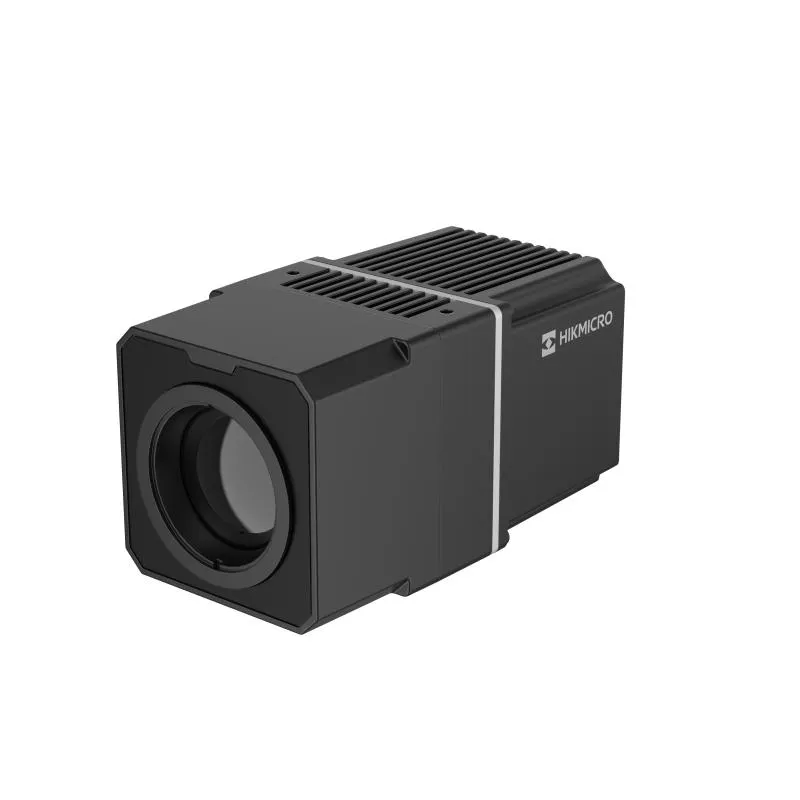

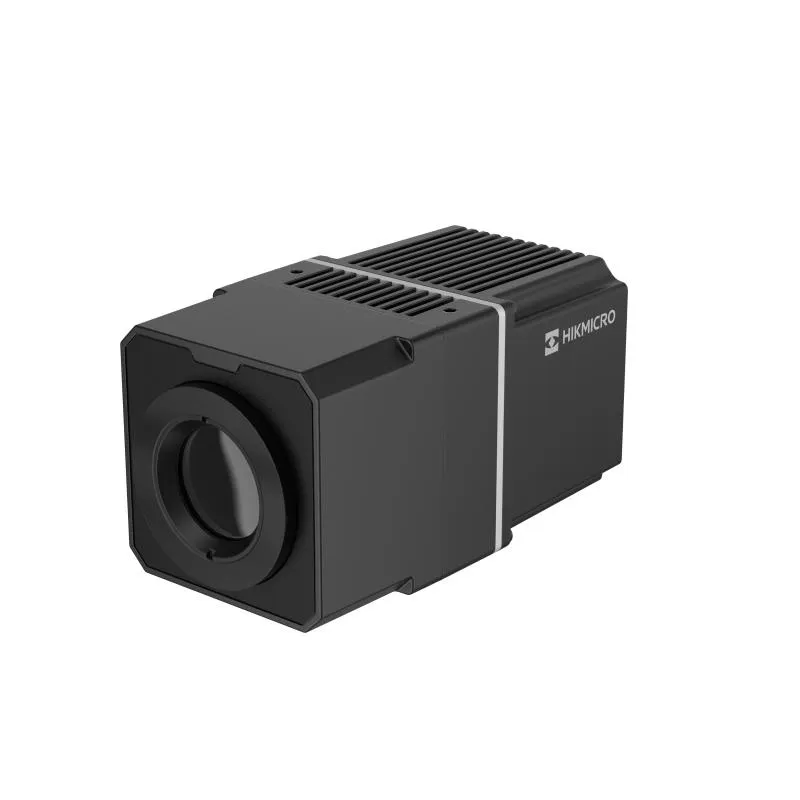

HIKMICRO Autofocus Box Thermal Camera
The HIKMICRO Autofocus Box Series delivers high-speed, continuous thermal monitoring with the added versatility of a motorized autofocus lens. Engineered for dynamic industrial environments where target distances may vary, this series eliminates the need for manual focal adjustments. Simply install the camera, and it will automatically lock onto the thermal target with perfect clarity.
Available in both 384 × 288 and high-definition 640 × 512 thermal resolutions, these cameras boast a fluid 50 fps refresh rate, making them ideal for monitoring fast-moving production lines, robotic welding cells, and automated quality control stations. Native support for Modbus TCP and RS485 ensures seamless integration into your existing PLC and SCADA architecture.
Key Professional Advantages
Motorized Autofocus Intelligence: Automatically adjusts focal length to maintain crisp thermal images even if the monitored asset shifts or the camera is redeployed to a new process line.
Dual Resolution Options: Choose the standard 384 × 288 resolution for close-range machinery, or upgrade to the 640 × 512 high-definition sensor for scanning larger areas with greater pixel density and precision.
Fluid 50 fps High-Speed Monitoring: High-speed 50 Hz frame rate captures rapid temperature spikes in fast-moving automation processes that standard 25 Hz cameras miss entirely.
Industrial Automation Ready: Built-in Modbus TCP and RS485 communication protocols allow the camera to act as a direct "thermal node" on your factory network, triggering automated actions without manual intervention.
Smart Alarms & External Control: Equipped with Alarm I/O interfaces, allowing the system to trigger external sirens, warning lights, or emergency machine shutdowns the instant a critical temperature threshold is breached.
Autofocus Box Series Variant Comparison
| Configuration | Thermal Resolution | Lens | Field of View | Best For... |
| 384×288 / 15 mm | 384 × 288 | 15 mm | 25.3° × 18.9° | General machinery monitoring and standard conveyor lines. |
| 384×288 / 25 mm | 384 × 288 | 25 mm | 14.8° × 11.1° | Targeted monitoring of specific components from a moderate distance. |
| 640×512 / 15 mm | 640 × 512 | 15 mm | 41.9° × 33.4° | High-definition wide-area scanning for large storage or manufacturing zones. |
| 640×512 / 25 mm | 640 × 512 | 25 mm | 25.0° × 20.0° | Long-distance, high-detail monitoring of critical substations or mechanical joints. |
Technical Specifications Overview
| Feature | Specification |
| Thermal Resolution | 384 × 288 OR 640 × 512 (Model Dependent) |
| Focus Mode | Motorized Autofocus |
| Frame Rate | 50 fps |
| Temperature Range | -20°C to 550°C |
| Measurement Accuracy | Max (±2°C, ±2%) |
| Communication Protocols | Modbus TCP, RS485 |
| Interface | Alarm Input / Alarm Output |
| Power Input | DC 12V |
Typical Industrial Applications
Robotic Welding & Metallurgy: Tracking heat signatures dynamically as robotic arms move across different weld seams.
Automated Quality Control: Scanning products on high-speed conveyor belts to ensure uniform heat distribution during manufacturing.
Substation & Electrical Cabinets: Continuous monitoring of switchgear where remote focusing capabilities improve safety and reduce maintenance time.
Waste & Fuel Storage: Automated fire detection in constantly shifting piles of coal, wood chips, or waste materials.
In the Box
HIKMICRO Autofocus Box Thermal Camera
Motorized Autofocus Lens (15 mm or 25 mm)
Industrial Mounting Bracket
Power & Data Interface Connectors
Calibration Certificate & Technical Documentation
Full Integration Manual (Modbus & RS485)
-
