G41

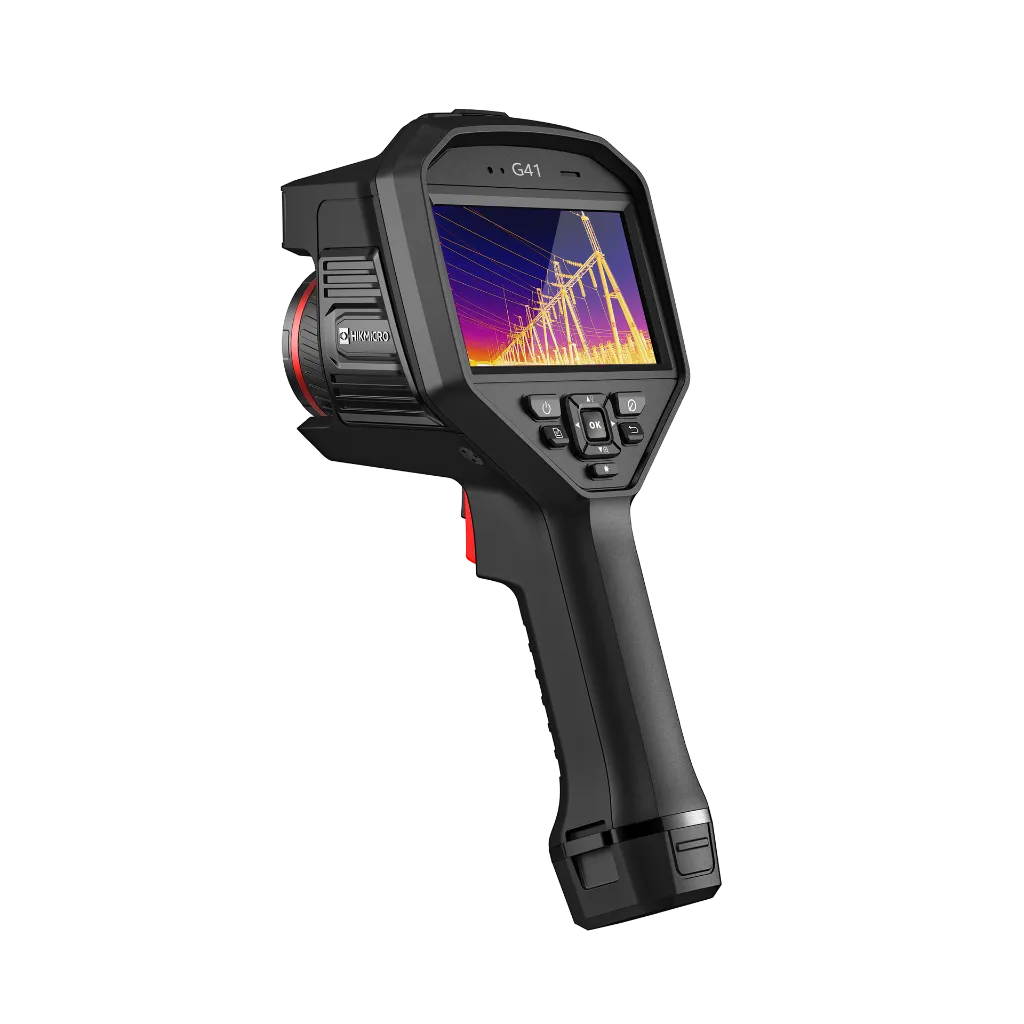

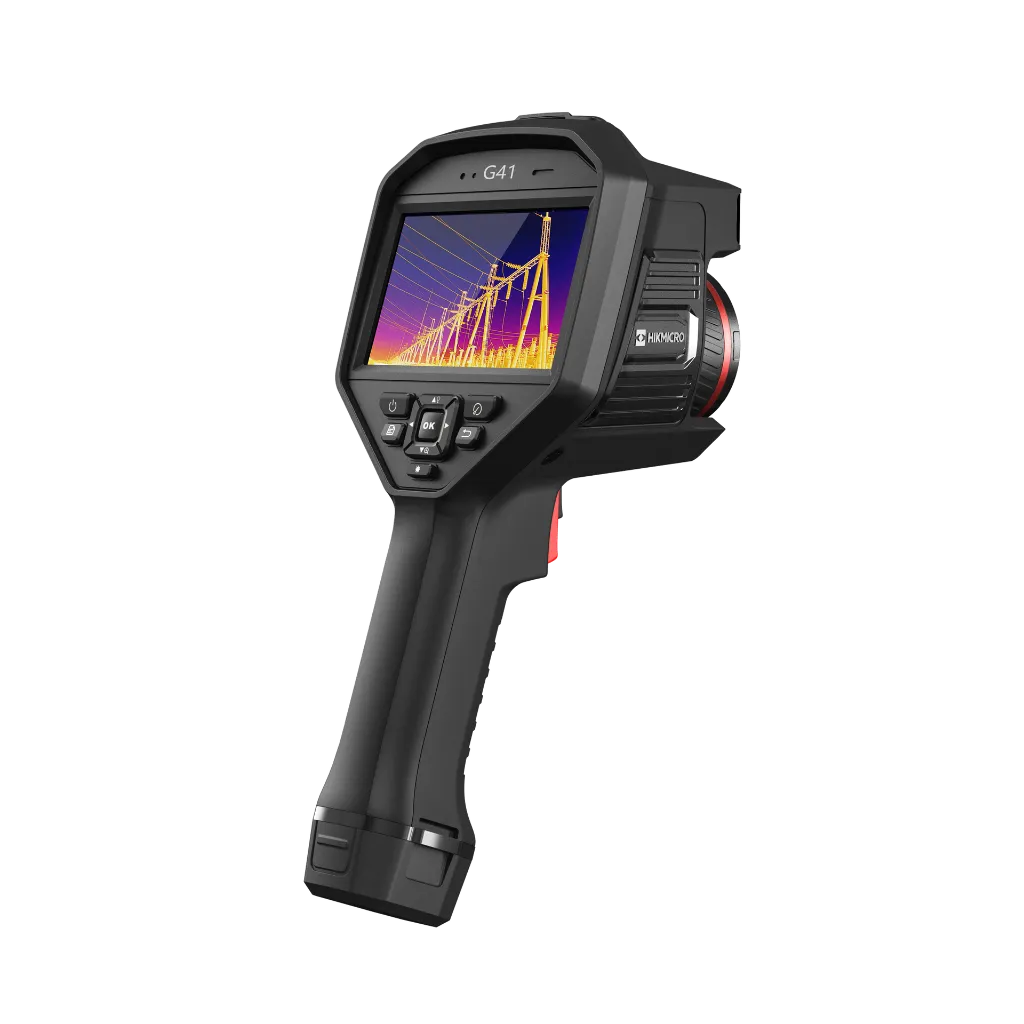

The HIKMICRO G41 is a high-performance handheld thermal camera designed for advanced industrial, utility, and building inspections. Engineered with a native 480 × 360 resolution and an integrated OLED viewfinder, the G41 bridges the gap between mid-range handhelds and elite professional systems. Its support for interchangeable lenses and laser-assisted autofocus makes it the definitive tool for engineers who need high-detail diagnostics across a wide variety of focal lengths.
Key Professional Advantages
Superior Thermal Clarity (SuperIR): The G41's native 480 × 360 resolution is upscaled in real-time by SuperIR technology to a massive 960 × 720 (691,200 pixels). This ensures that even the smallest thermal anomalies are captured with sharp, high-contrast detail, essential for professional reporting.

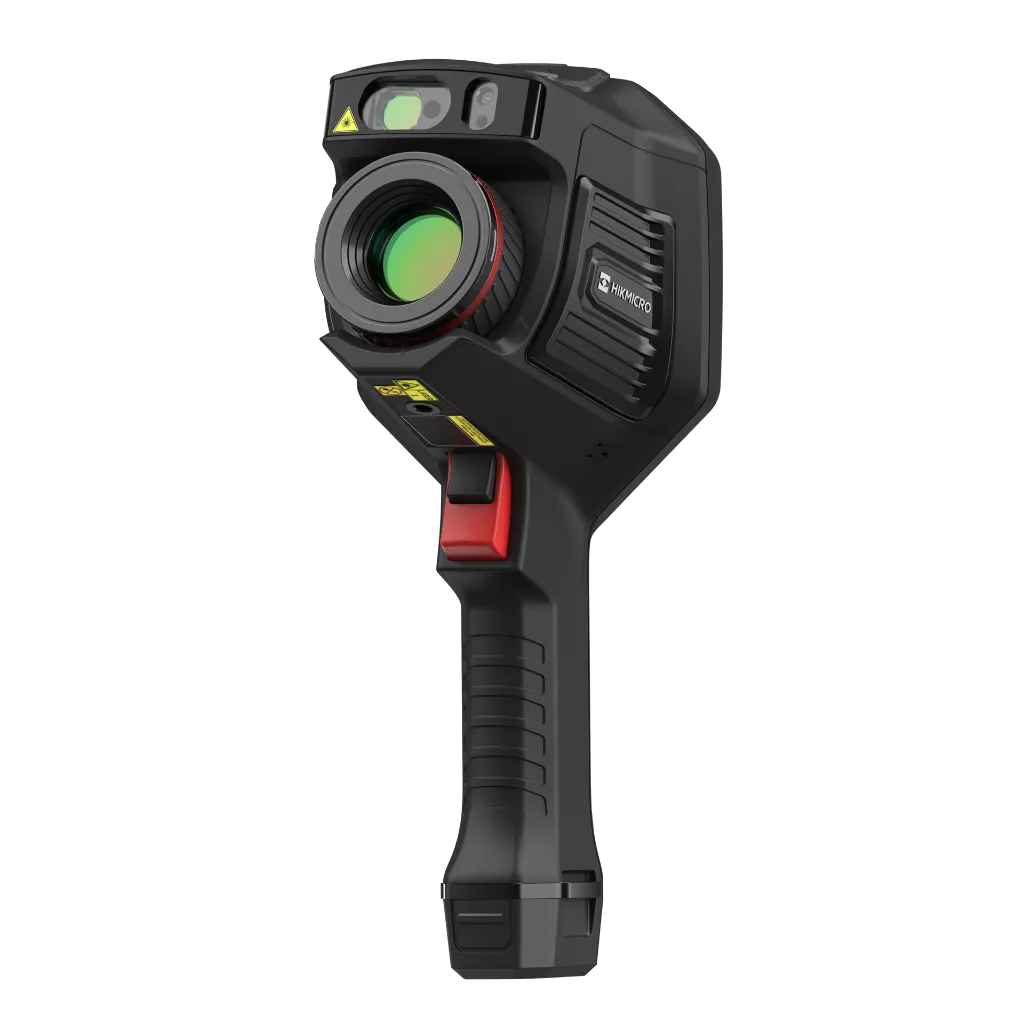

Flexible Optical System: Unlike fixed-lens units, the G-Series supports interchangeable lenses. Whether you need a wide-angle lens for indoor HVAC work or a telephoto lens for distant utility pylons, the G41 adapts to your specific field requirements without compromising image quality.
Advanced Tri-Focus System: Achieving a sharp image is effortless thanks to three focus modes: Manual, Continuous Autofocus, and Laser-Assisted Focus. The built-in laser distance meter ensures the camera calculates the exact distance to your target, providing ultra-accurate temperature readings.

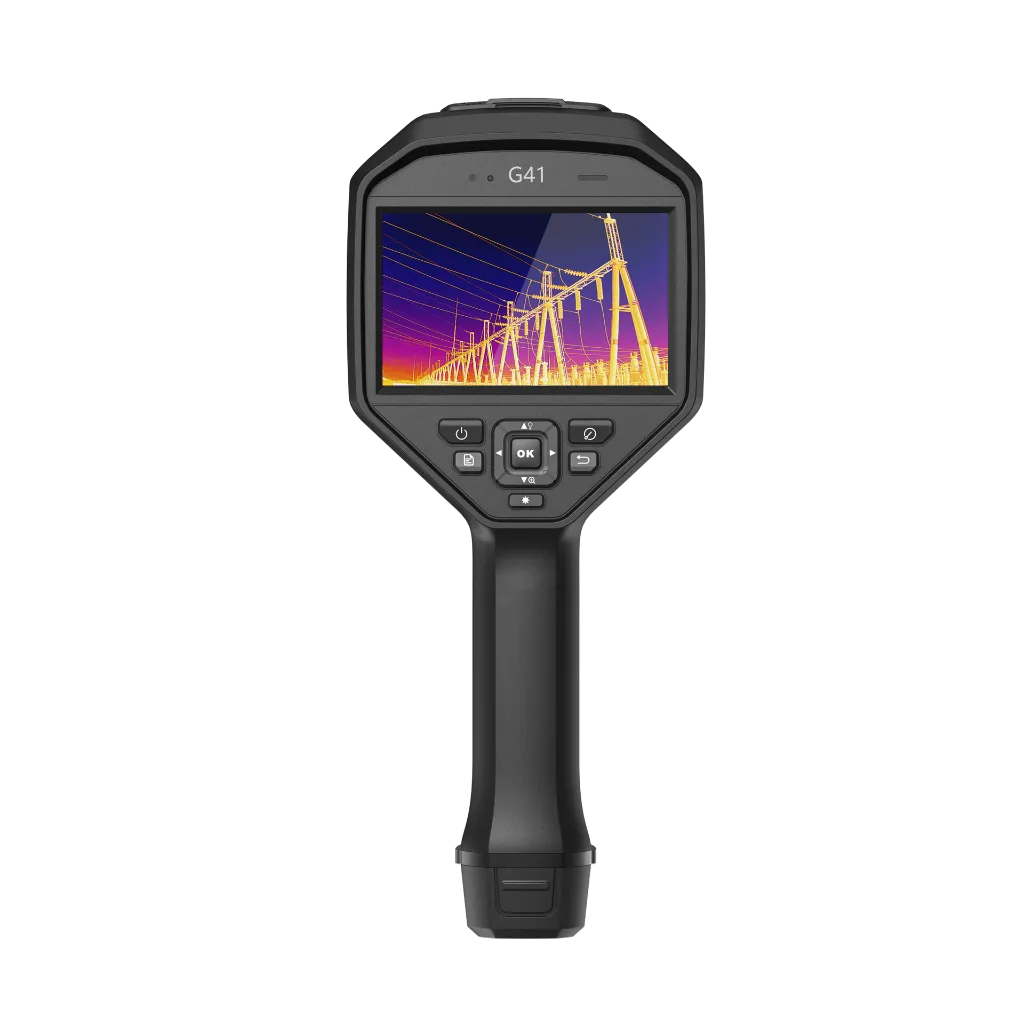

High-Contrast OLED Viewfinder: In addition to the large 4.3” LCD touchscreen, the G41 includes a high-resolution viewfinder. This is a critical feature for inspections under direct sunlight, where screen glare can obscure fine thermal details.
Rugged Industrial Build: Designed for the harshest environments, the G41 is IP54-rated for dust and water resistance and is drop-tested to 2 meters. Its ergonomic "gun-style" handle is balanced for long-duration surveys in factories or substations.
Technical Specifications Overview
| Feature | Specification |
| Native Thermal Resolution | 480 × 360 (172,800 pixels) |
| SuperIR Resolution | 960 × 720 (691,200 pixels) |
| Focus Mode | Laser-Assisted, Auto, and Manual |
| Object Temperature Range | -20°C to 650°C (-4°F to 1202°F) |
| Frame Rate | 25 Hz |
| Thermal Sensitivity (NETD) | < 35 mK |
| Digital Zoom | 1.0x to 8.0x Continuous |
| Visual Camera | 8 MP with Thermal Fusion & PIP |
Industrial Use Cases
Electrical Infrastructure: High-resolution scanning of high-voltage transformers, switchgear, and distant transmission line connectors.
Manufacturing & Mechanical: Identifying thermal friction in heavy-duty motors, misaligned bearings, and steam trap failures.
Renewable Energy: Precision auditing of solar arrays and wind turbine components where long-range telephoto capability is required.
Building Science: Detailed energy audits to identify moisture ingress, insulation voids, and thermal bridges in large-scale commercial facades.

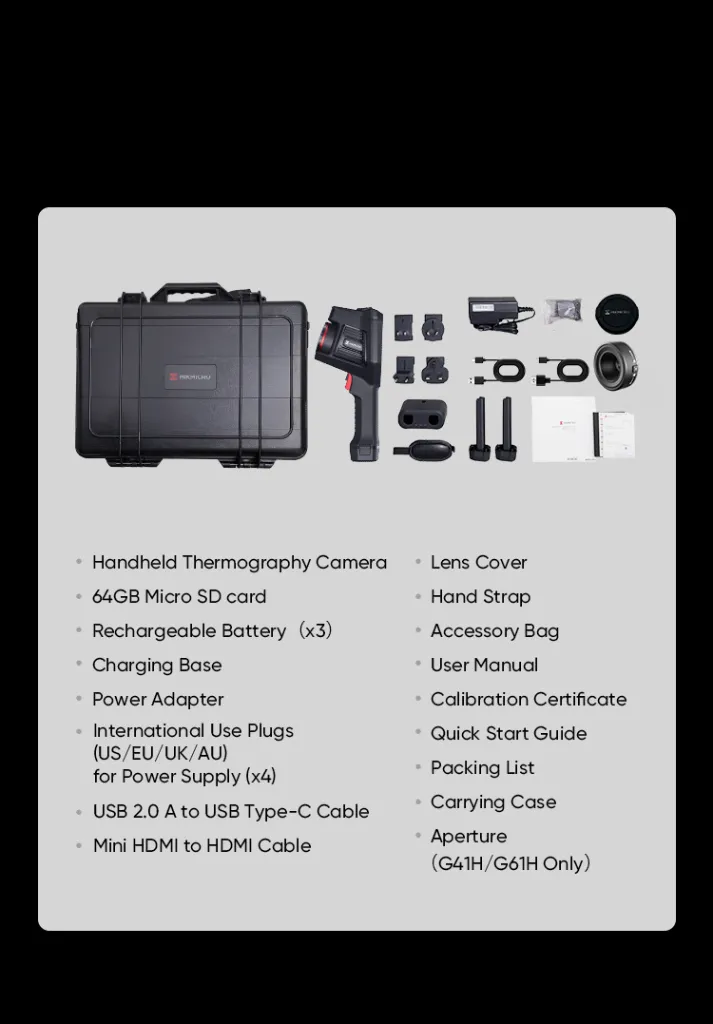

In the Box
HIKMICRO G41 Professional Thermal Camera
Two (2) Interchangeable Li-ion Batteries
Charging Base & Power Adapter
Rugged, Airtight Hard Carrying Case
USB-C and HDMI Cables
MicroSD Card
Calibration Certificate
