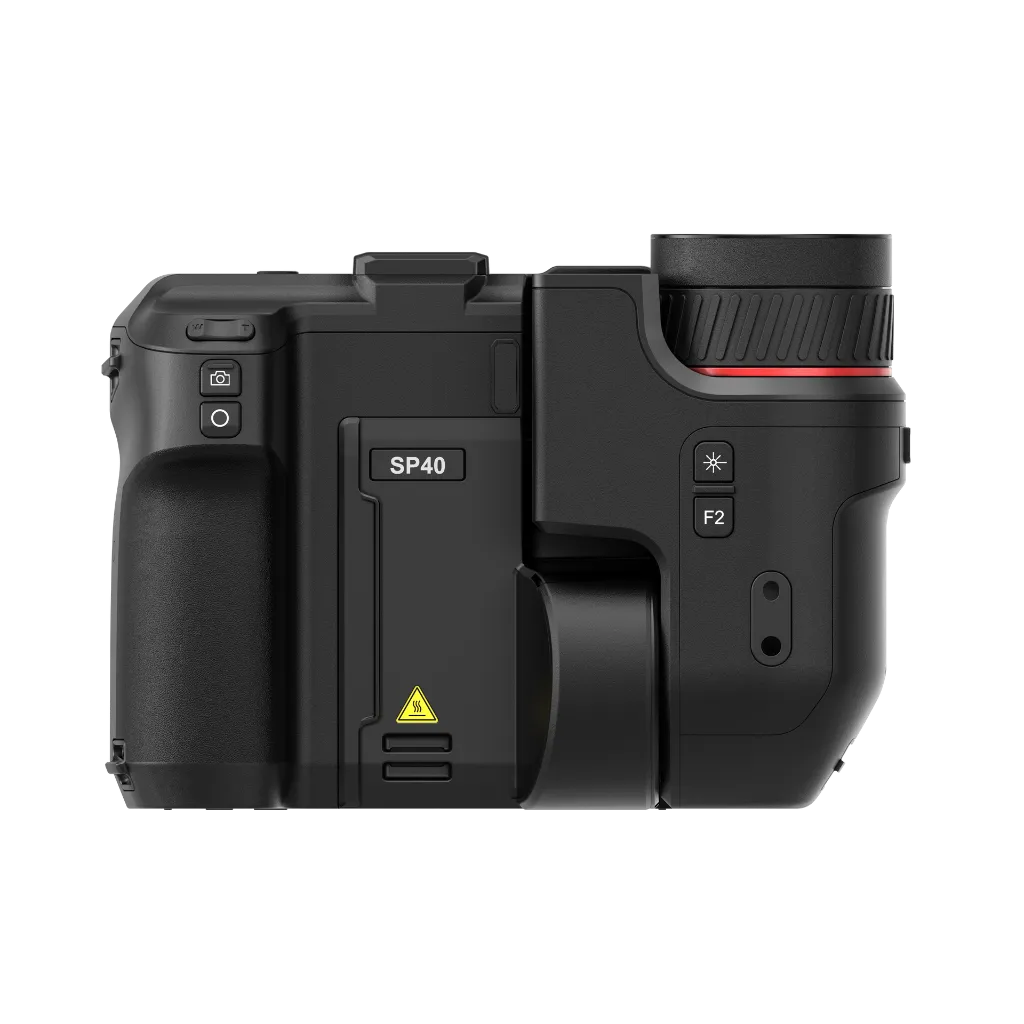

Hikmicro SP40 Series
The HIKMICRO SP40 Series is a world-class handheld thermal imaging solution designed specifically for complex industrial, utility, and building diagnostics. Featuring a high-resolution 480 × 360 thermal sensor and an innovative 180° rotating lens, the SP40 allows thermographers to inspect hard-to-reach components at any angle while maintaining a clear view of the high-definition display.
Key Professional Advantages

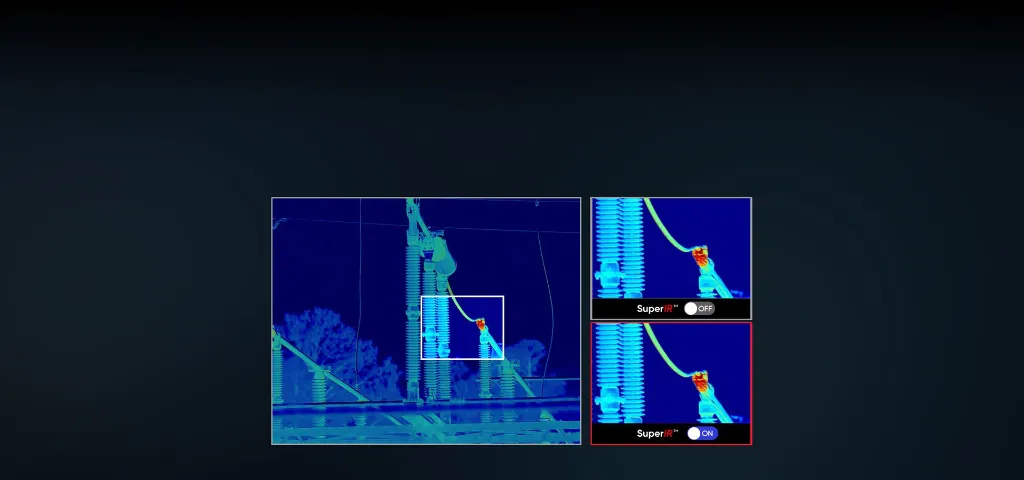

Exceptional Image Quality (SuperIR): While the native resolution is a sharp 480 × 360, HIKMICRO’s SuperIR technology upscales imagery in real-time to a staggering 960 × 720 (691,200 pixels). This level of detail is critical for identifying thermal anomalies in high-density electrical panels or distant overhead lines.

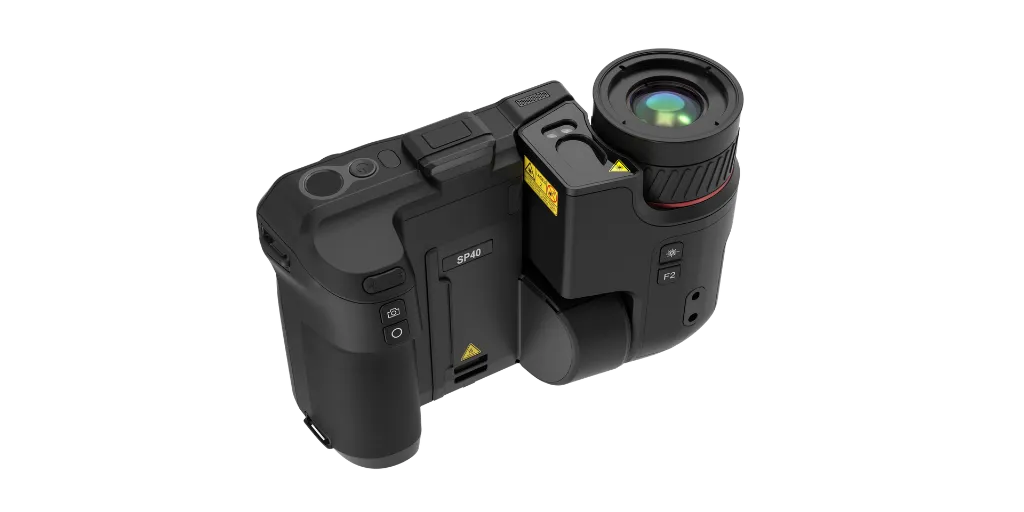

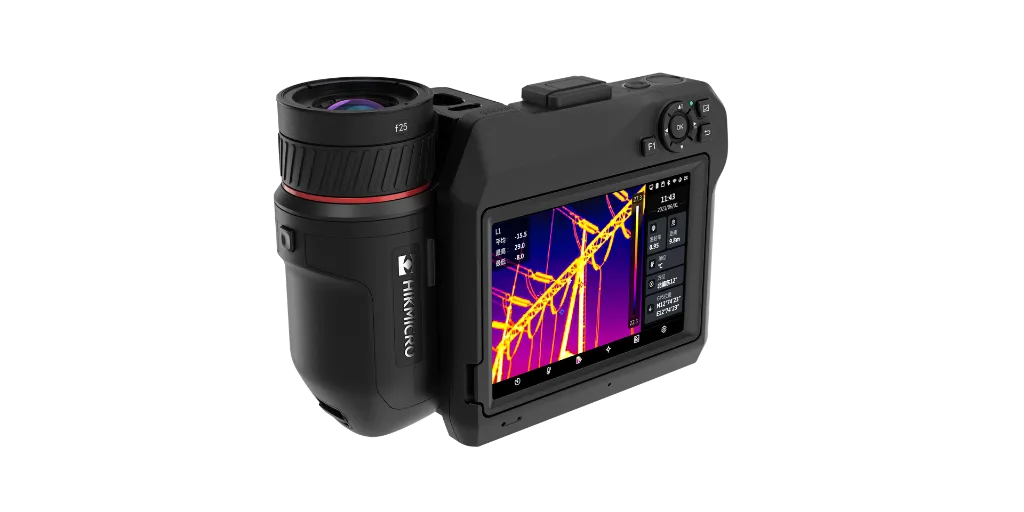

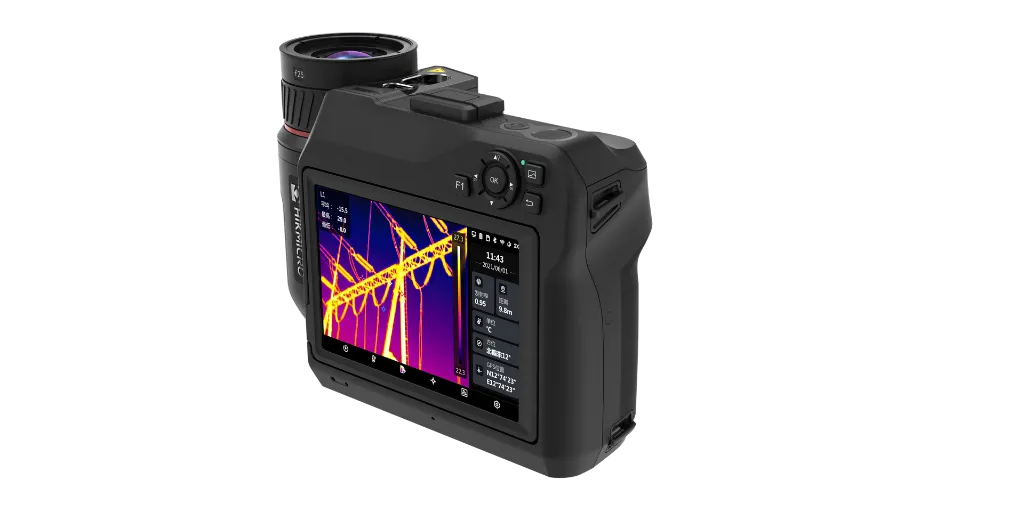

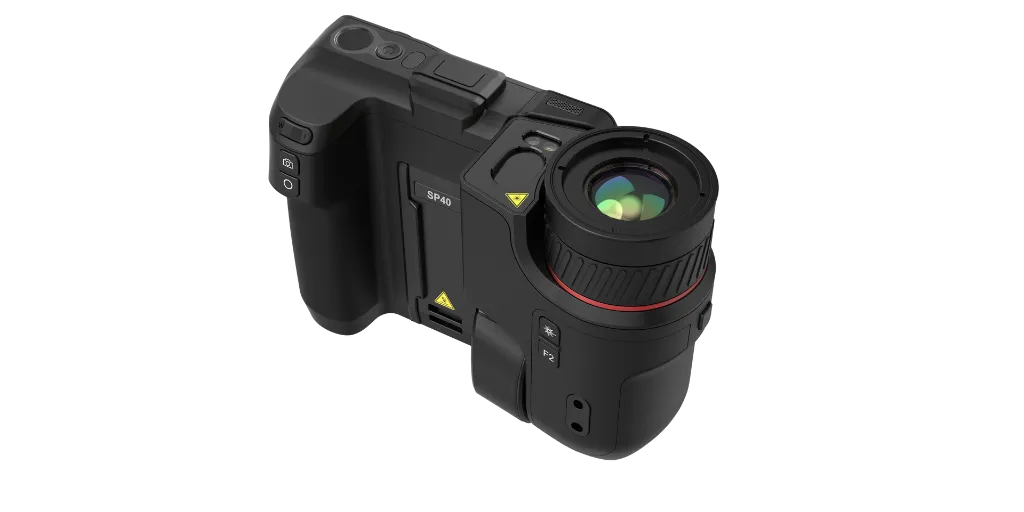

Ergonomic 180° Rotating Design: The rotating lens module, combined with a 90° rotating 5-inch touch screen, reduces physical strain during long inspection days. It enables easy scanning under machinery, above ceilings, or around obstacles without compromising your viewing angle.
Precision Interchangeable Lenses: The SP40 system supports a full suite of professional lenses. From ultra-telephoto (6°) for high-voltage utilities to wide-angle (37°) for large-scale facility audits, the SP40 adapts to every environment.
Extreme Thermal Sensitivity: With a NETD < 30 mK, the SP40 detects the most minute temperature differences. This sensitivity is essential for identifying early-stage moisture intrusion, insulation gaps, or subtle bearing wear in mechanical systems.

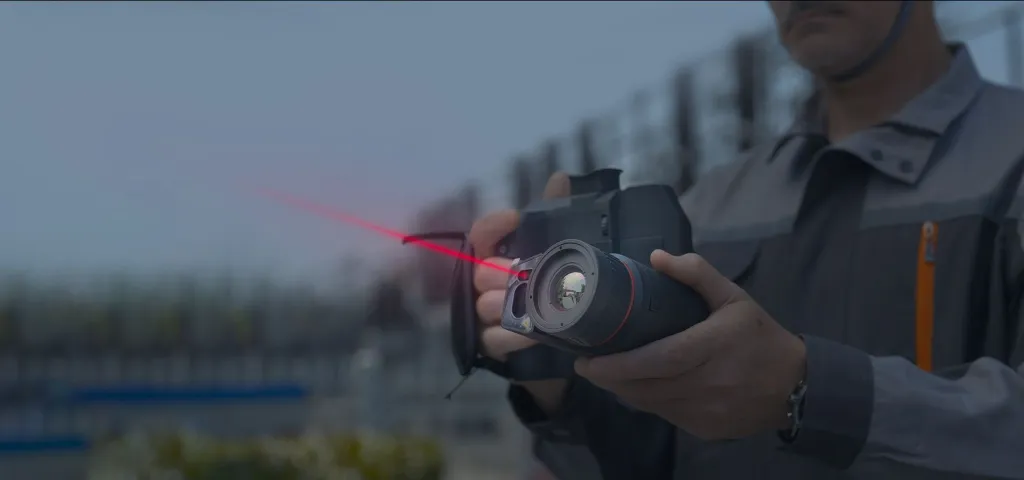

Advanced Analytical Tools: Features including continuous digital zoom (up to 12x), laser distance meter, GPS tagging, and voice annotations allow for comprehensive on-site documentation and seamless reporting.
Lens Configuration Guide
| L6 (6°) / L9 (9°) | Long-range utility inspections, power lines, and substations. |
| L19 (18.7°) | Standard industrial maintenance, motors, and electrical switchgear. |
| L37 (37.3°) | Indoor building diagnostics, HVAC systems, and large area scans. |
| Combo Kits | Professionals requiring maximum versatility for both indoor and outdoor assets. |
Technical Specifications Overview
| Thermal Resolution | 480 × 360 (172,800 pixels) |
| SuperIR Resolution | 960 × 720 (691,200 pixels) |
| Frame Rate | 25 Hz |
| Temperature Range | -20°C to 650°C (-4°F to 1202°F) |
| Thermal Sensitivity (NETD) | < 30 mK (@ 25°C, F#=1.0) |
| Digital Zoom | 1.0x to 12.0x Continuous |
| Display | 5" 1280 × 720 Color LCD Touch Screen |
| Visual Camera | 8 MP |
| Battery Life | Approx. 4 hours continuous use per battery |
Typical Industrial Applications
Power Utilities: Safe inspection of high-voltage transformers and connectors from a distance using telephoto lenses.
Manufacturing & Mechanical: Predictive maintenance of high-speed production lines, motors, and gearboxes.
Oil & Gas: Monitoring of high-temperature refinery equipment and identifying tank levels or pipe blockages.
Building Science: Advanced energy auditing, identifying thermal bridges, and precise moisture detection in commercial structures.
In the Box (Standard Kit)
HIKMICRO SP40 Thermal Camera
Selected Interchangeable Lens(es)
Two (2) Rechargeable Li-ion Batteries & Dual-bay Charger
Rugged, Airtight Hard Carrying Case
USB & HDMI Cables
Wrist & Neck Straps
Calibration Certificate & Quick Start Guide
-
