Hikmicro SP40H High-Temp Series

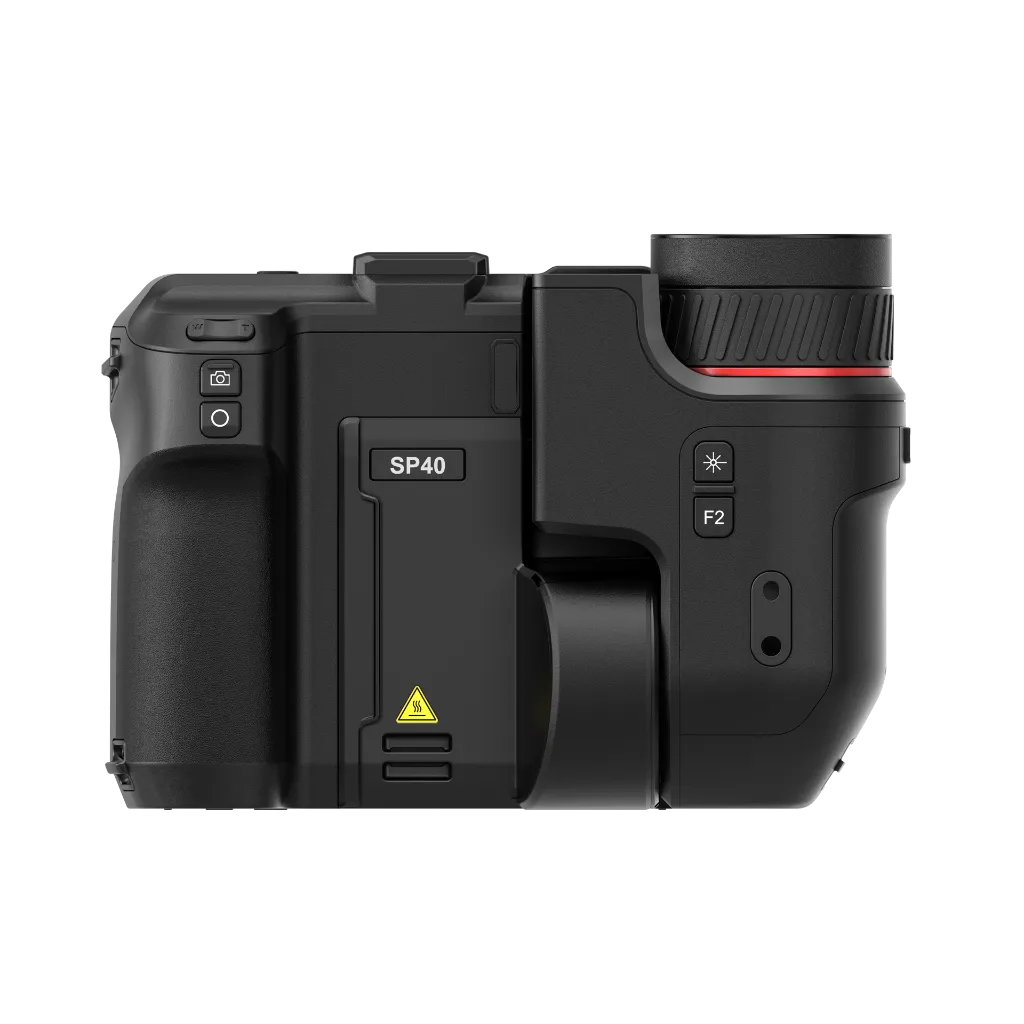

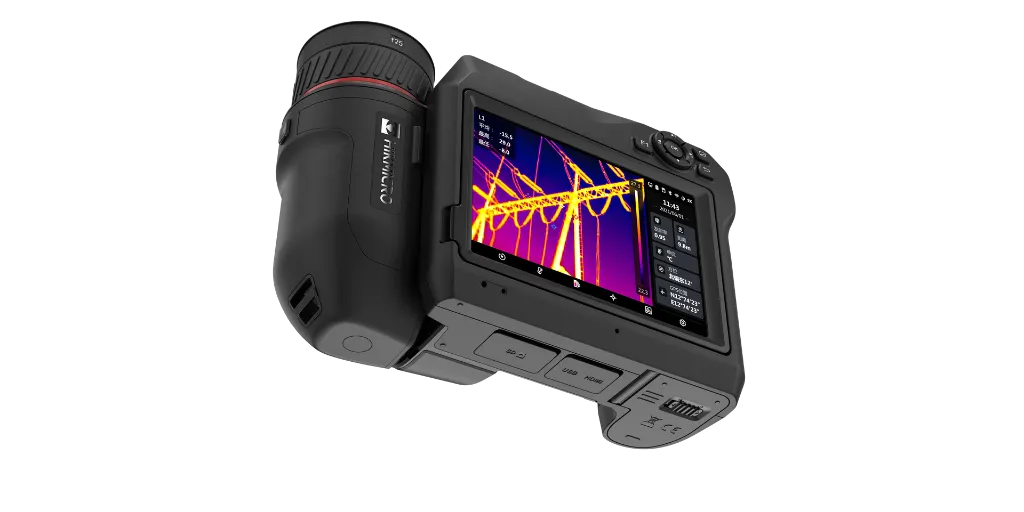

The HIKMICRO SP40H is a specialized, ultra-high-performance handheld thermal camera designed for the most demanding thermal monitoring tasks. While it shares the premium ergonomic features of the standard SP40, the "H" model is engineered with an extended temperature calibration reaching up to 2200°C (3992°F). This makes it the definitive choice for professionals in metallurgy, power generation, glass manufacturing, and heavy industrial research.
Key Professional Advantages
Extreme Temperature Capability: Specifically calibrated to measure temperatures from -40°C to 2200°C. Whether you are monitoring molten glass or high-performance furnaces, the SP40H provides reliable, precise data where standard cameras fail.

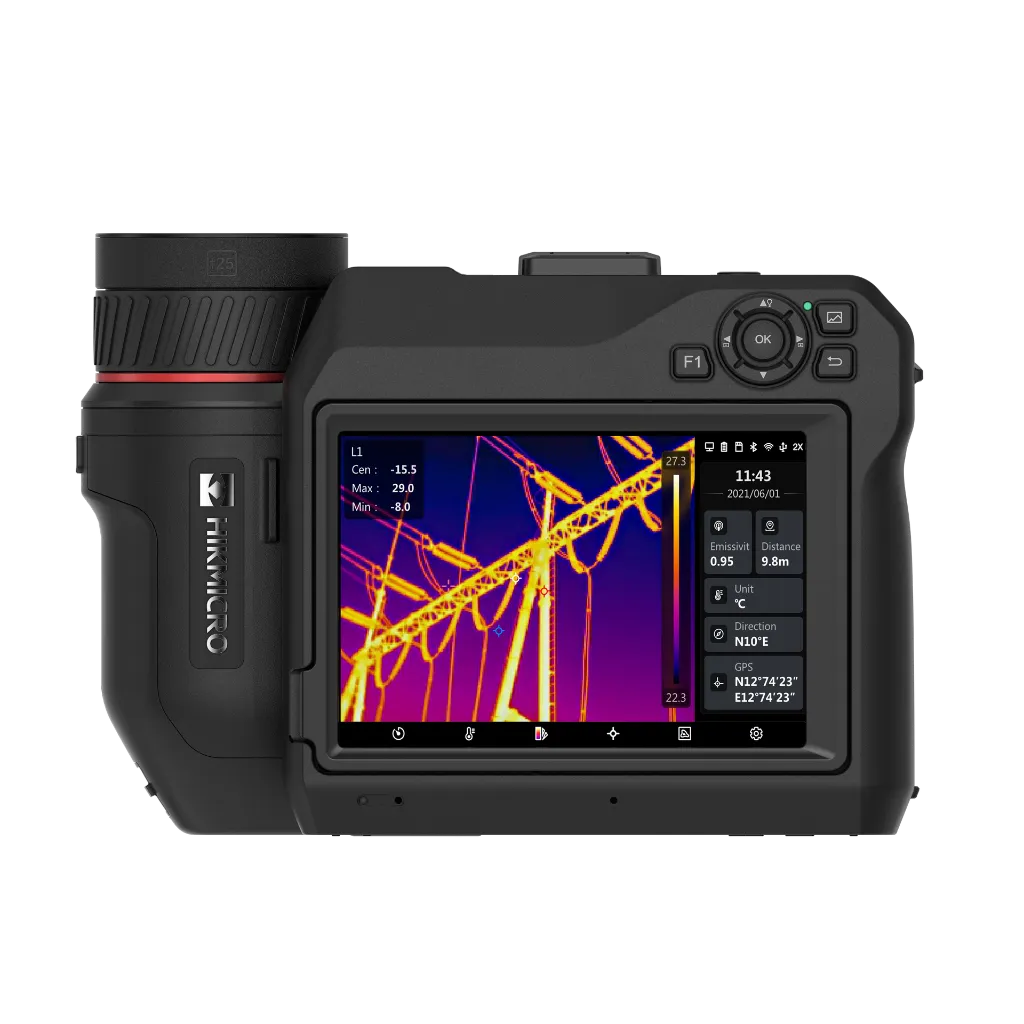

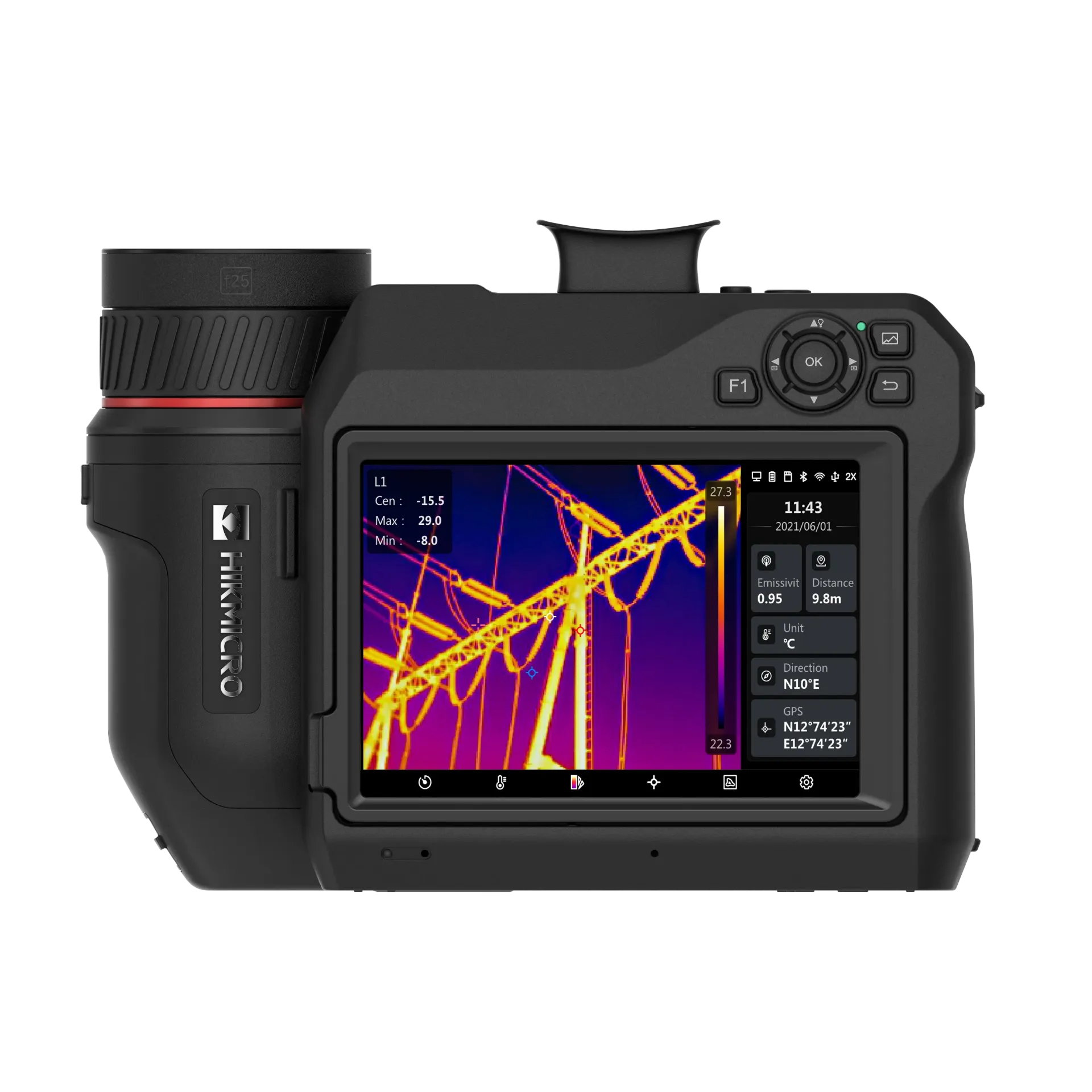

Dual-View Display (LCD + OLED Viewfinder): Includes a massive 5-inch touch screen for collaborative work and a high-resolution 1024 × 768 OLED electronic viewfinder. The viewfinder is essential for outdoor inspections under direct Bulgarian sunlight and for maintaining a safe visual on targets in high-heat environments.
Smooth 30 Hz Performance: Unlike standard cameras, the SP40H features a 30 Hz refresh rate. This ensures fluid real-time monitoring of fast-moving thermal processes or scanning large-scale industrial assets without motion blur.
Superior Accuracy & Sensitivity: With a NETD < 30 mK, it detects the slightest temperature variances. For critical monitoring, it offers class-leading accuracy of ±1°C (for the 0-100°C range), ensuring your predictive maintenance data is highly actionable.

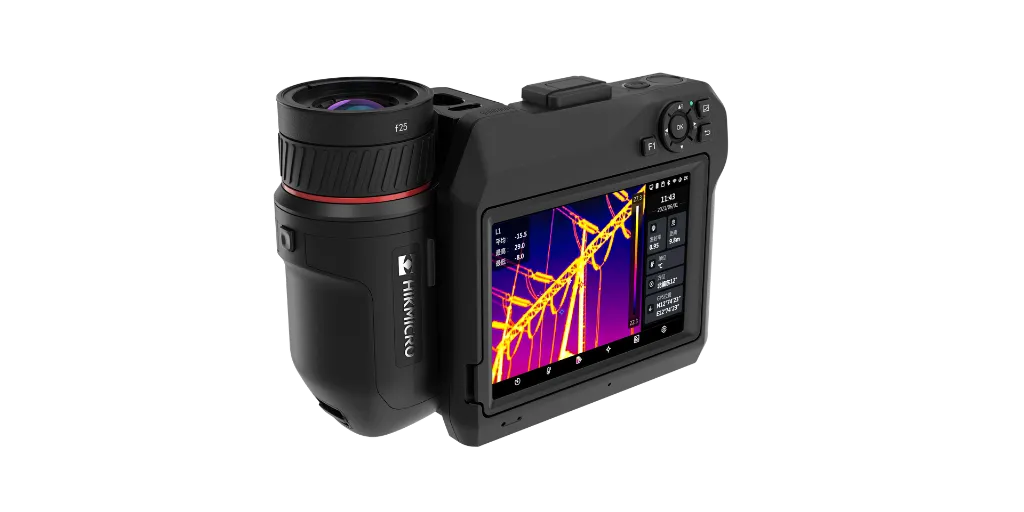

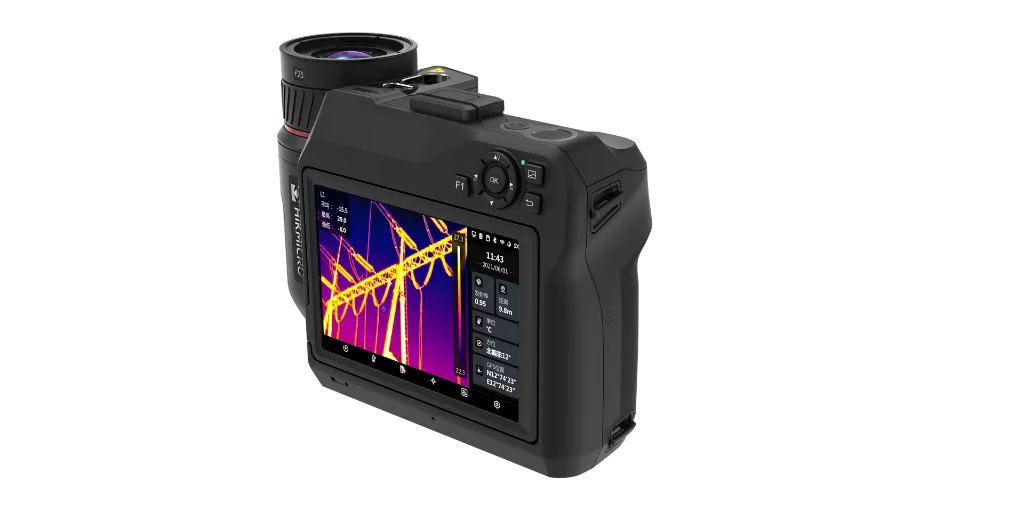

180° Rotating Module: The lens rotates 180° and the screen tilts 90°, allowing thermographers to easily inspect hard-to-reach furnace openings or ceiling-mounted electrical connectors without physical strain.
Lens Configuration Guide
| Lens Type | Best For... | Typical Industrial Use Case |
| L6 (6°) / L9 (9°) | Long-Range Telephoto | Safe monitoring of high-heat furnace interiors or distant substation connectors. |
| L19 (18.7°) | Standard Field of View | Ideal for metallurgy, glass manufacturing lines, and heavy-duty motor inspections. |
| L37 (37.3°) | Wide-Angle | Large-scale thermal mapping of kiln exteriors and industrial facility audits. |
Technical Specifications Overview
| Feature | Specification |

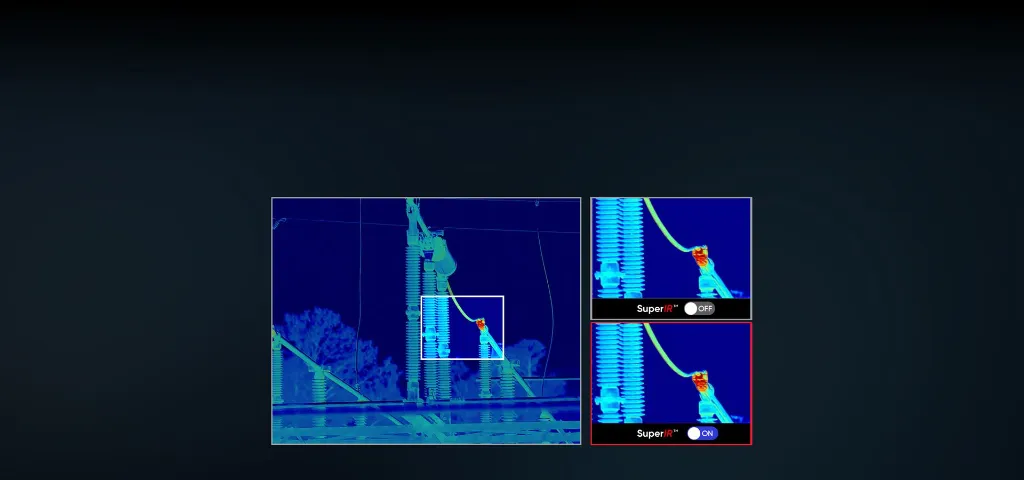

| Thermal Resolution | 480 × 360 (Native) / 960 × 720 (SuperIR) |
| Object Temperature Range | -40°C to 2200°C |
| Image Frequency | 30 Hz |
| OLED Viewfinder | 1024 × 768 Resolution |
| Internal Storage | 128 GB (Up to 130,000 images) |
| Thermal Sensitivity (NETD) | < 30 mK |

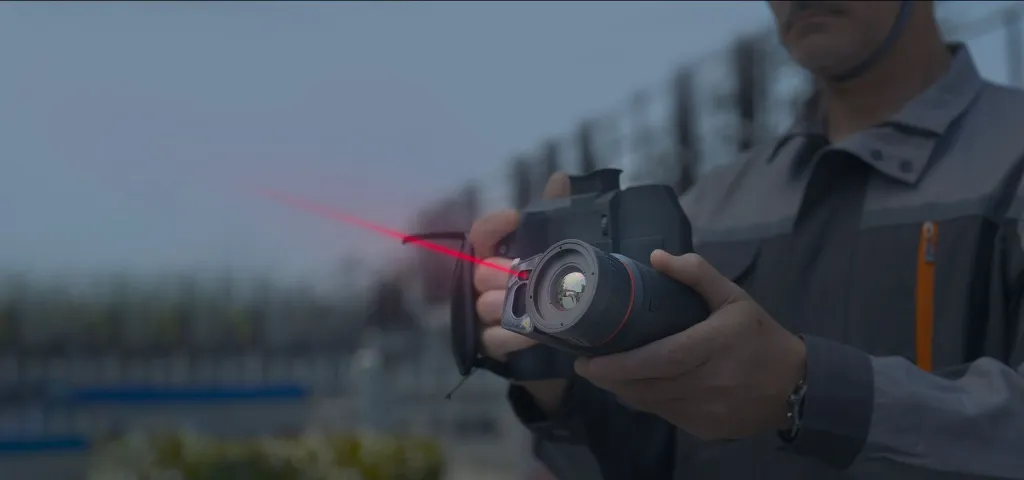

| Focus Mode | Laser-Assisted, Continuous, or Touch AF |
| Display | 5" 1280 × 720 LCD Touch Screen |
High-Temperature Industrial Applications
Metallurgy & Foundries: Monitoring blast furnaces, molten metal temperatures, and ladle integrity.
Glass & Ceramics: Precise thermal control in glass melting furnaces, annealing lehrs, and forming equipment.

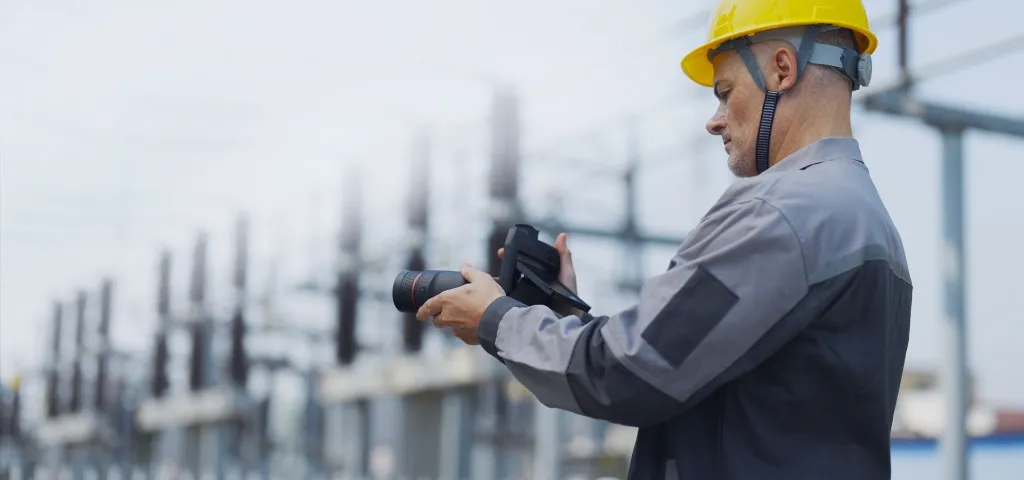

Power Utilities: Inspecting high-voltage insulators and connectors from a safe distance using the telephoto lens.
Petrochemical: Monitoring high-temperature refinery reactors and Identifying thermal insulation failures in steam pipes.
In the Box
HIKMICRO SP40H Thermal Camera (High-Temp)
Selected Interchangeable Lens
Two (2) Rechargeable Li-ion Batteries & Dual-bay Charger
Rugged, Airtight Hard Carrying Case
Calibration Certificate (up to 2200°C)
HDMI & USB-C Cables
-
